Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only

Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only

SKU: F24R-EO 3 626

Brand : Falcon

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,375.00
$1,375.00
Finish: 626 - Satin Chrome
Rating: Fire Rated
Subtotal: $1,375.00
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Heavy Duty – Grade-1 ANSI Certified
  • Fits Door Stiles as Narrow as 3 1/2″
  • Non-Handed, Specify for Convenience

Secured and trusted checkout with

Details

Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only

Panic exit hardware: The Falcon 24-R Series narrow stile rim device allows for application versatility in high-traffic installations. Standard features include a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Fire exit hardware: The Falcon F-24-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also features a single-point, rim type latch and can be electrified.

Features:

  • Extruded aluminum construction delivers greater strength and impact resistance
  • Includes panic exit and fire exit hardware for single and double door applications
  • No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
  • One trim input design provides maximum versatility and ability to use various trims
  • Stainless steel push pad cover provides a scratch-resistant pushing surface
  • Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
  • Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors
Read more
More Information
Specifications
  • Hand: Non-handed
  • Function: EO (Exit only)
  • Strikes: 299F strike standard.
  • Door Size: 3' (36")
  • Min stile: 3 1/2" (31 1/2")
  • Min door opening width: 2' 7 1/2"
  • Latchbolt: Stainless steel, 3/4" throw.
  • Deadlocking latchbolt: Standard.
  • Doors: 1 3/4" thick, wood or metal. Specify thickness if other than 1 3/4".
  • Projections: 2 3/4" maximum.
  • Mounting height: 40" from CL to finished floor.
  • Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
  • Fasteners: All mounting screws are concealed. Furnished with all machine screws.
  • Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (#10-24) SNB and 2 - 325 (1⁄4"-20) SNB. For devices with trim, specify 4 - 425 (#10-24) SNB.
  • ANSI: Certified ANSI A156.3-2001 grade 1 standards.
  • Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
UPC 722208645585
Literature
literature
Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only
Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only

Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only

Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only

Falcon 24-R-EO Narrow Stile Rim Exit Device, Exit Only

$1,375.00
Finish: 626 - Satin Chrome
Rating: Fire Rated
Compare color
  • 626-satin-chrome

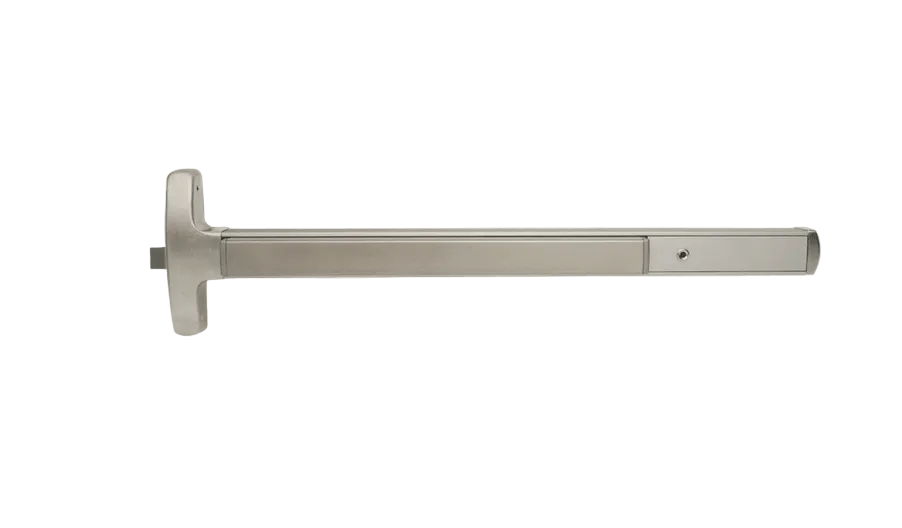

  • 630-satin-stainless-steel

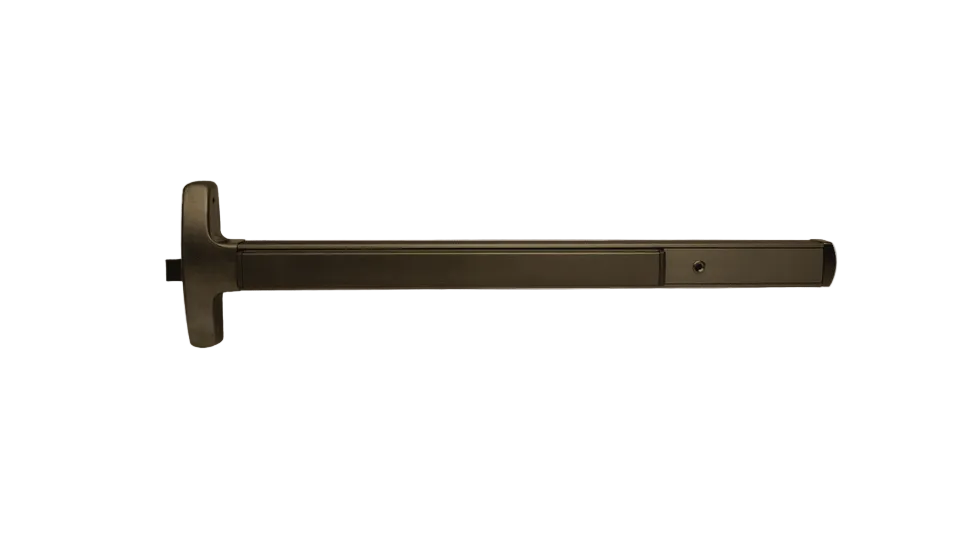

  • 710-duranodic-dark-bronze

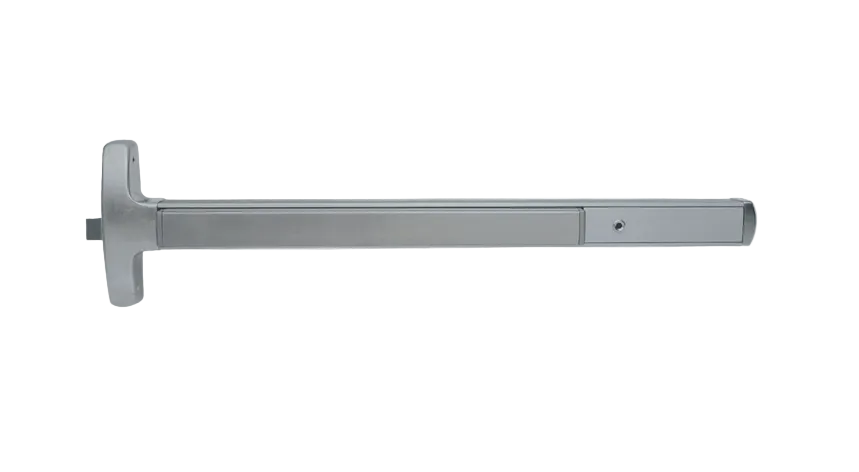

  • 628-anodized-aluminum
