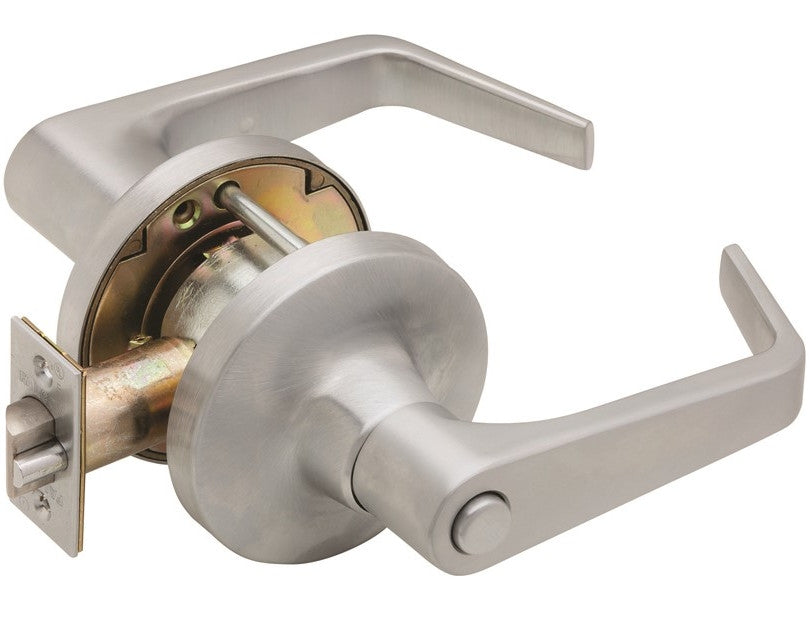

Falcon T291 Grade 1 Privacy Hospital Cylindrical Lock

The T Series are extra heavy-duty Grade 1 cylindrical locks designed to stand up to high-traffic and heavy-abuse applications. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements.

Function:

Latch bolt operated by levers/knobs from either side.
Outside lever/knob locked by push button on inside lever/knob.
Rotating inside lever/knob, closing door, or turning emergency release turn button on outside releases button.
Inside lever/knob always free for immediate egress.

Certifications:

ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1
UL: 3 hour A label and outer trim shall “bottom out” to prevent door collapse. Roses shall be minimum of 3-1/2” diameter

More Information

Specifications	Door Thickness: 1-3/4" - 2-1/4" Cylinder Type: Non-Keyed Handing: Non-Handed Std. Strike Height: 4-7/8" Std. Strike Width: 1-1/4" Dust Box: None Screws: Combination Std. Latch Backset Dim: 2-3/4" Latch Bore Diameter: 1" Bore Hole Diameter: 2-1/8" Lock Face Size: 2-1/4" x 1-1/8" Bolt Projection: 1/2" Latch Std. Strike Type: ANSI Strike Std. Latch Type: Spring Latch (Unguarded) Rose/Escutcheon Design: Standard Rose Rose/Escutcheon Dimensions: 3-1/2" Rose Diameter
UPC	722208640825
