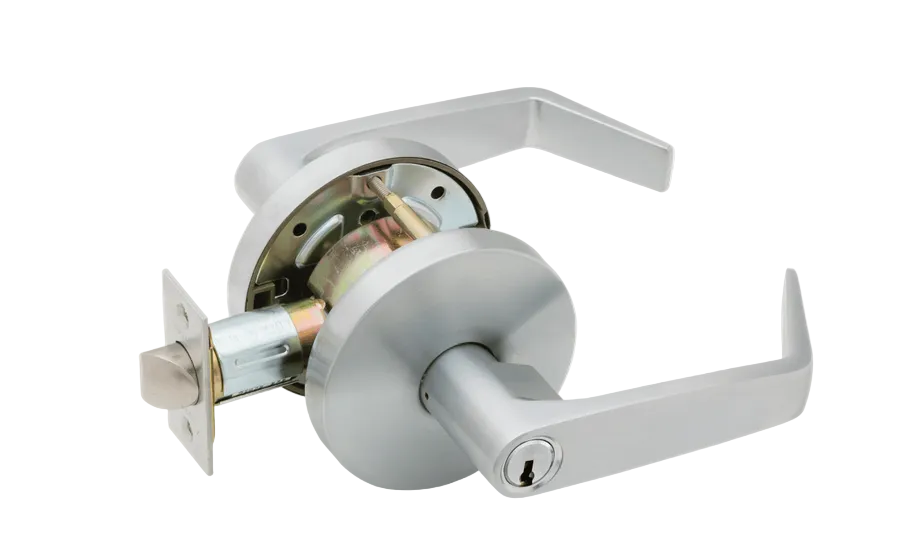

Falcon W511 Grade 2 Entry/Office Cylindrical Lock

Falcon W511 Grade 2 Entry/Office Cylindrical Lock

Ideal for low-traffic doorways, the W Series can be used in retail, multi-family, mix-use, government and industrial applications.

Function:

• Turn/push button locking: Pushing and turning button locks outside lever/knob requiring use of key until button is manually unlocked.

• Push button locking: Pushing button locks outside lever/knob until unlocked by key or by rotating inside lever/knob.

• Inside lever/knob always free for immediate egress.

• Latch bolt operated by levers/knobs.
• Key enables only unlocking from outside.

Specifications:

• Bolt Projections: 1/2" Latch
• Bore Hole Diameter: 2 1/8"
• Cylinder Type: Key-in-Lever
• Door Thickness: 1 3/8" - 2"
• Handing: Non-handed
• Latch Bore Diameter: 1"
• Lock Face Size: 2 1/4" x 1 1/8"
• Std. Backset: 2 3/4"
• Std. Strike: ANSI Strike, 1 1/4" x 4 7/8"
