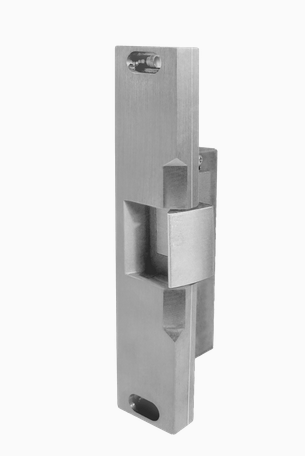

HES 310-4 24D 630 Fail Secure, Complete 24VDC Electric Strike, PK Keeper, Satin Stainless Steel
The 310-4 is a 3 hour fire-rated, industrial electric strike designed for extreme heavy duty applications. The 310-4 has a unique 3/4" face plate with an integraded 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.
Application:
- Adjustability : Horizontal
- Surface Mounting : Cutting Required
- Frame Material : Metal|Wood
- Latchbolt Accommodation : Up to 1"
Electrical:
- Voltage : 24 VDC
- Monitoring Installation : Factory Configured
- Monitoring Options : Latchbolt and locking cam monitor with auxiliary switch
Certifications:
- ANSI/BHMA A156.31, Grade 1
- RoHS Compliant
- UL 1034 burglary-resistant listed
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- UL294 Listed
