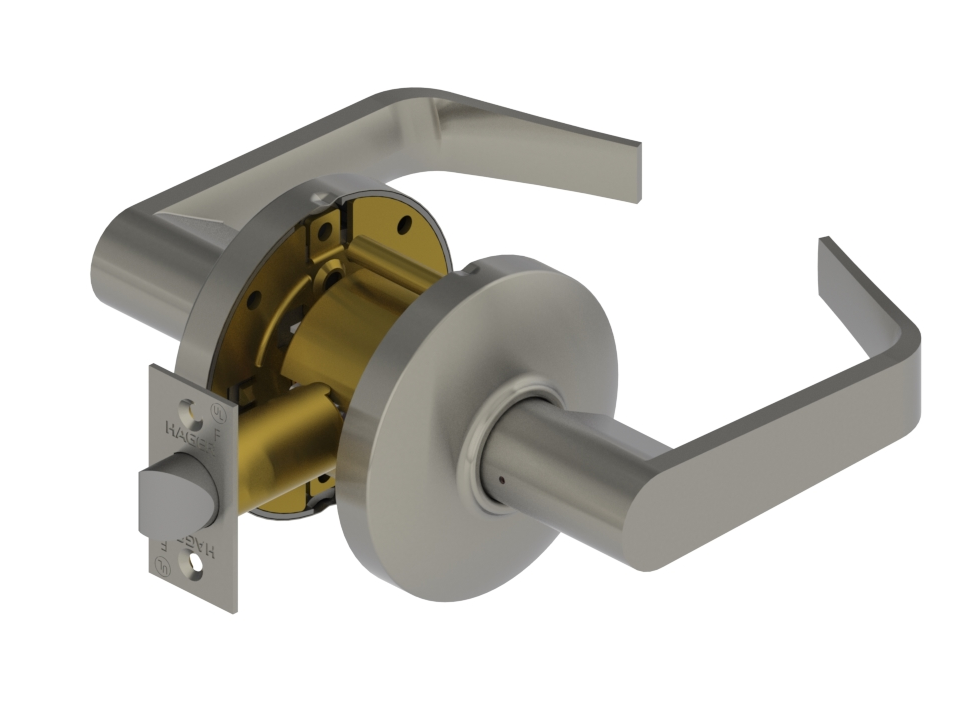

Hager 3510 Passage Lever Set
| Certifications: |
- BHMA Certified ANSI A156.2, Series 4000, Grade 2 - ADA Compliant ANSI A117.1 Accessibility Code - UL/cUL Listed for all functions up to 3 hours "A" label single doors (for double doors application, UL/cUL Listed when used with 3/4" latchbolt) - ANSI A250.13 Severe Windstorm Component - UL10C Positive Pressure Rated - UL10B Neutral Pressure Rated - Lifetime warranty |
| Exposed Trim: |
- Levers: cast zinc - Rose: wrought brass or stainless steel |
| Lock Chassis: |
- Heavy gauge steel, zinc dichromated for corrosion resistance - Free wheeling (levers only) - Removable thru-bolts - Failure to install thru-bolts and removable screw posts voids BHMA certification, UL Rating, and Warranty. |
| Rose Diameter: |
- 3-11/32" (85 mm) levers |
| Door Thickness: |
- Levers: 1-3/8" - 2" (35 mm - 51 mm) |
| Backset: |
- 2-3/4" (70 mm) - Standard |
| Latchbolt: |
- 1/2" (13 mm) Throw - Stainless steel - 1-1/8" x 2-1/4" (25 mm x 57 mm) Faceplate for 2-3/4" (70 mm) backset - 1" x 2-1/4" (25 mm x 57 mm) Faceplate for 2-3/8" (60 mm) backset |
| Strikes: |
- 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike - Standard |
| Standard door prep: |
- 2-1/8" diameter (cross bore) - Latch hole: 1" diameter (edge bore) |
