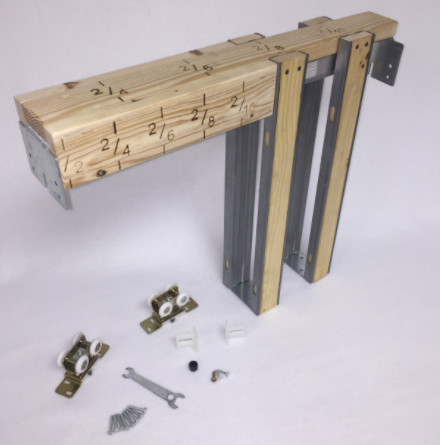

Hager 9850HD Heavy Duty Pocket Door Frame Kit, For Doors up 250 Lbs.

Hager 9850HD Heavy Duty Pocket Door Frame Kit, For Doors up 250 Lbs.

This Hager 9850 Series Heavy Duty Pocket door kit bears doors with a maximum weight of 250 lbs. The set contains jump proof track and rollers , a pre-assembled header for easy installation, and the 9801 heavy duty aluminum box track.

Installation:

• For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately,
• Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width

Certifications:

• Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation.
• Type: D02311-250
• ADA Compliant

Included Parts

• Header and Track – 9801 (1 ea)

• End Bracket Plain (1 ea)

• Floor Plate (2 ea)

• Split Stud (6 ea)

• Carrier – 9827 (2 ea)

• Quick Release Plate – 9610 (2 ea)

• Door Guide Set – 9883 (1 ea)

• Bumper Kit – 9881 (1 ea)

• #8 x ¾” Phillips Pan Head Screws

• #8 x 1” Phillips Pan Head Screws (8 ea)

• #8 x 5/8” Phillips Truss Head Screws (2 ea)

Compares To:

• Stanley PDF250
• Lawrence PF619
