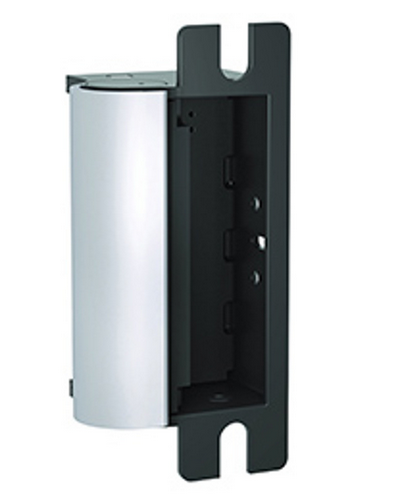

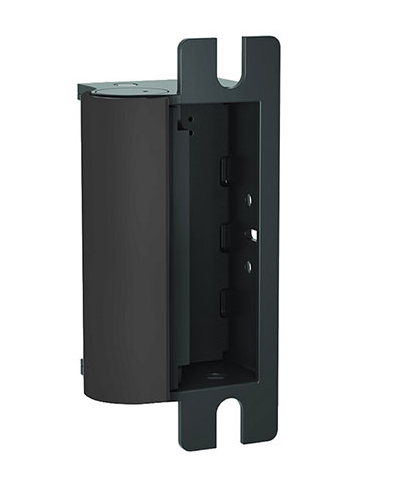

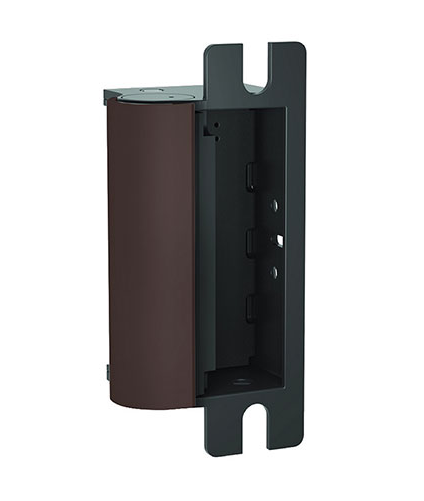

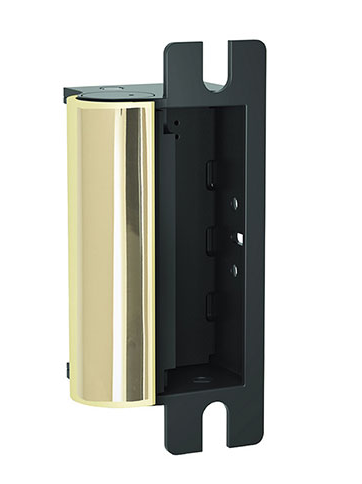

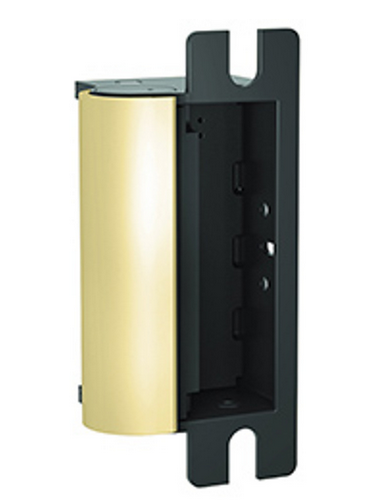

HES 1006 Electric Strike Body for Cylindrical or Mortise Lock, Fail Secure

HES 1006 Electric Strike Body for Cylindrical or Mortise Lock, Fail Secure

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy-duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8″ strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

• Electric strike body only, faceplates ordered separately

Application:

• Adjustability : Horizontal
• Surface Mounting : Cutting Required
• Frame Material : Metal|Wood
• Shim Type : Field Adjustable
• Latchbolt Accommodation : Up to 3/4"

Certifications:

• ANSI/BHMA A156.31, Grade 1
• ANSI/SDI 250.13 Certified
• ASTM E152 Fire Door Compliant
• ASTM E330 Certified
• Florida Building Code Approved FL# 16392
• NFPA-252 fire door Compliant
• RoHS Compliant
• UL 1034 burglary-resistant listed and suitable for outdoor use
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• UL294 Listed
