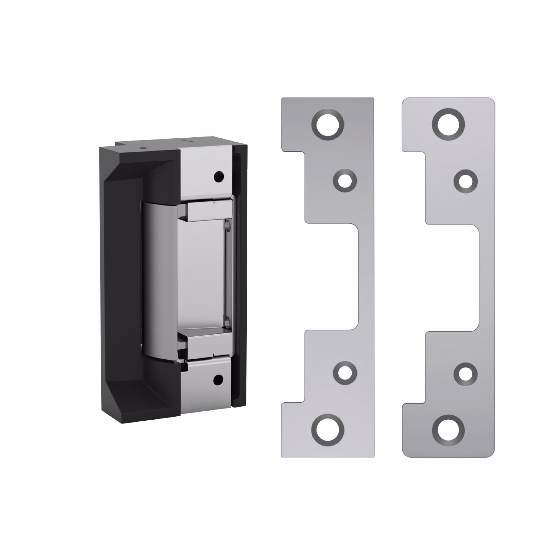

HES 5000C Complete Pac Electric Strike for Cylindrical Locks, Satin Stainless Steel
The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb.
Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.
Frame application: Metal or Wood
Electrical:
- .24 Amps at 12 VDC/VAC
- .12 Amps at 24 VDC/VAC
- DC continuous duty/AC intermittent duty only
Standard Features:
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)

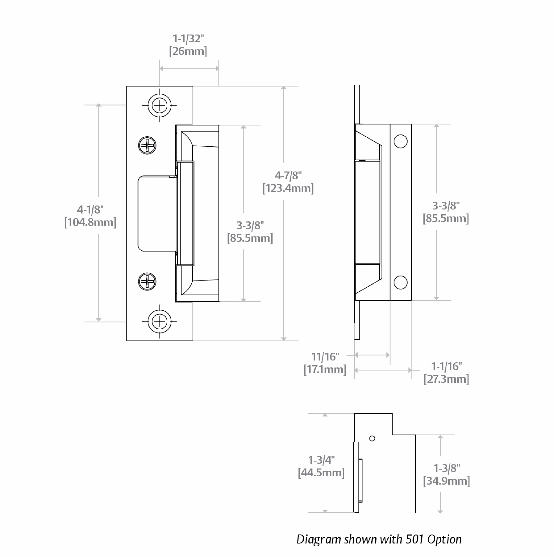

- Strike body depth 1-1/16"
- Plug-in connector
- Trim enhancer included
- Five year limited warranty
| Specifications |
|
|---|---|
| UPC | 722208648302 |
