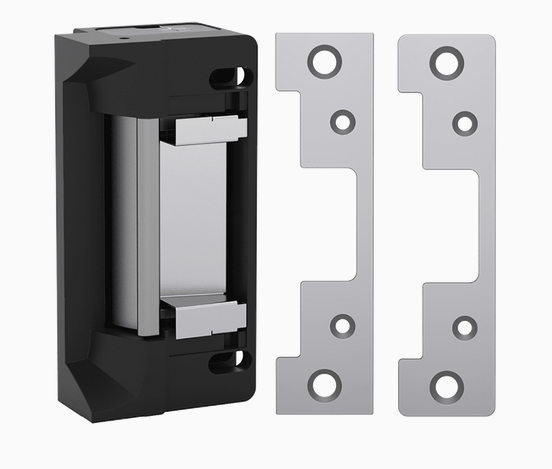

HES 5200C Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel
The 5200 series electric strike features an in-frame horizontal adjustable design to simplify the installation process.
Frame application: Metal or Wood
Electrical:
- .24 Amps at 12 VDC/VAC
- .12 Amps at 24 VDC/VAC
- DC continuous duty/AC intermittent duty only
Standard Features:
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector
- Trim enhancer included
- Five year limited warranty
| Specifications |
|
|---|
