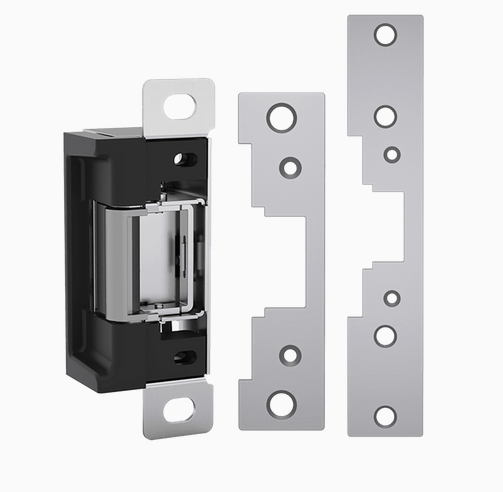

HES 7000C Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel
HES 7000C Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

HES 7000C Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

SKU: 7000C-630-LBM

Brand : Hes

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$354.40
$354.40
Latchbolt Monitor: Switch Type: Latchbolt Monitor
Subtotal: $354.40
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

HES 7000C Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

The 7000 Series has both an in-frame adjustable feature as well as a pre-load release function.

The 7000 Series offers two solutions to address pre-loaded doors. This unit accommodates cylindrical latchbolts up to 5/8" throw and rim exit latchbolts up to 3/4" throw.

  • UL 1034, burglary-resistant listed
  • ANSI/BHMA A156.31, Grade 1 (791 and 792 options)
  • ANSI/BHMA A156.31, Grade 2 (783S, 786S and 789S options)
  • MEA New York City accepted
  • Patent #5,484,180
Read more
More Information
Specifications
  • Fire Rated: No
  • Frame Application: Metal or Wood

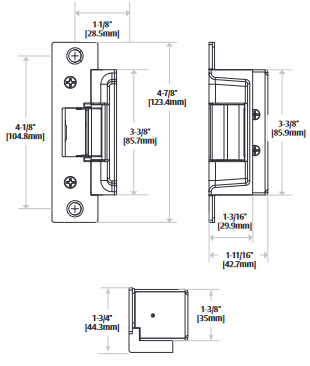

  • Faceplate Size: 4-7/8" x 1-1/4"
  • Keeper Size: 1/2"
  • Configuration: Centered
  • Operating Voltage: 12/24 VDC
  • Function: Fail Safe/Fail Secure
  • For Use With: Cylindrical Locks
  • Pre-Load: 15 lbs.
  • Faceplate Shape: Flat Face, Square Corners
  • AMP Draw: .45 Amps @ 12VDC, .25 Amps @ 24VDC
