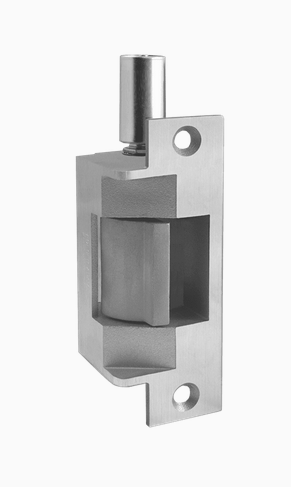

HES 712-75 24D 630 Fail Secure, Complete 24VDC Electric Strike, 3/4" Keeper, Metal Frame, Satin Stainless Steel

HES 712-75 24D 630 Fail Secure, Complete 24VDC Electric Strike, 3/4" Keeper, Metal Frame, Satin Stainless Steel

SKU: 712-75 24D 630

Brand : Hes

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$718.00
$718.00
Subtotal: $718.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

HES 712-75 24D 630 Fail Secure, Complete 24VDC Electric Strike, 3/4" Keeper, Metal Frame, Satin Stainless Steel

The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications.

The all stainless steel construction of this device makes it ideal for high abuse applications. The 712 series is designed to accommodate 1/2" throw latchbolts, and the 712-75 is designed to accommodate 3/4" latchbolts.

Application:
  • Adjustability : Horizontal
  • Surface Mounting : Cutting Required
  • Frame Material : Metal|Wood
  • Shim Type : NA
  • Latchbolt Accommodation : Up to 3/4"
Certifications:
  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 10C Fire Rated
  • UL 294 Listed
  • UL 1034 Burglary-Resistant Listed
Read more
More Information
Specifications
  • AMP Draw: .15 Amps
  • Configuration: Centered
  • Faceplate Size: 4-7/8" x 1-1/4"
  • Fire Rated: Yes
  • For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
  • Frame Application: Metal
  • Function: Fail Secure
  • Holding Force: 1500 lbs.
  • Keeper Size: 3/4"
  • Operating Voltage: 24 VDC
