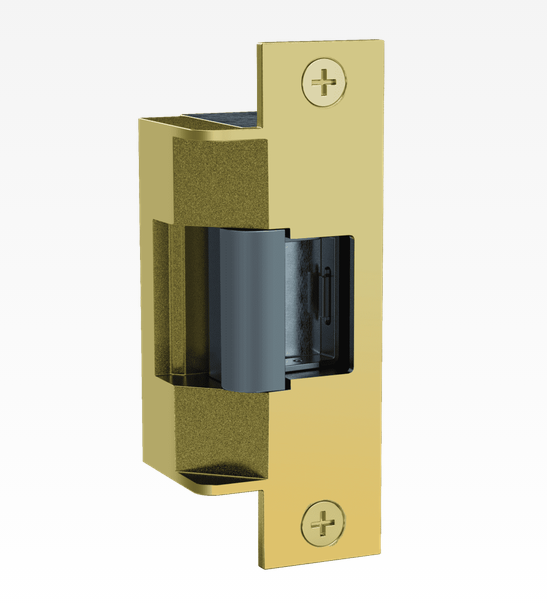

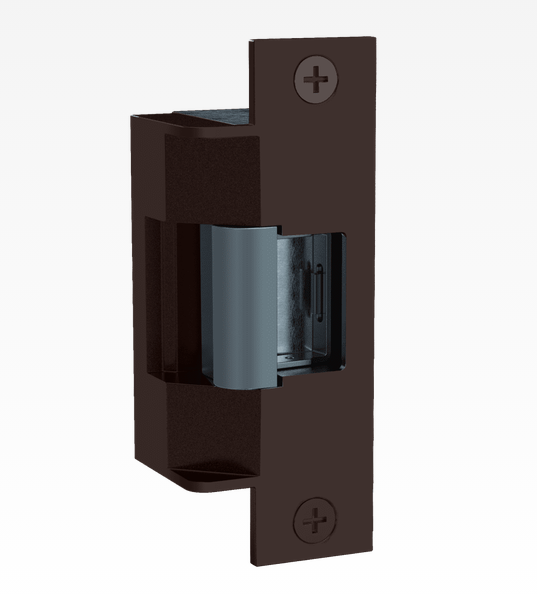

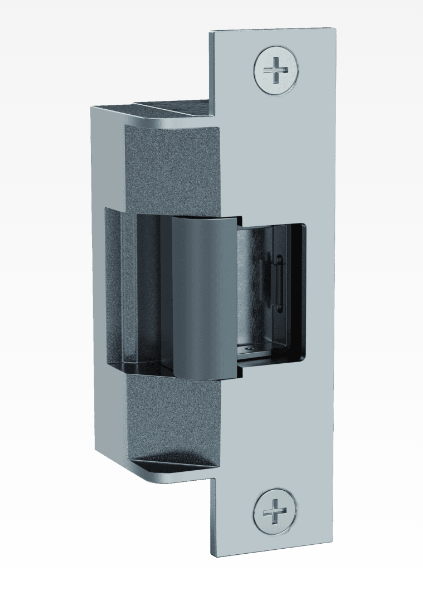

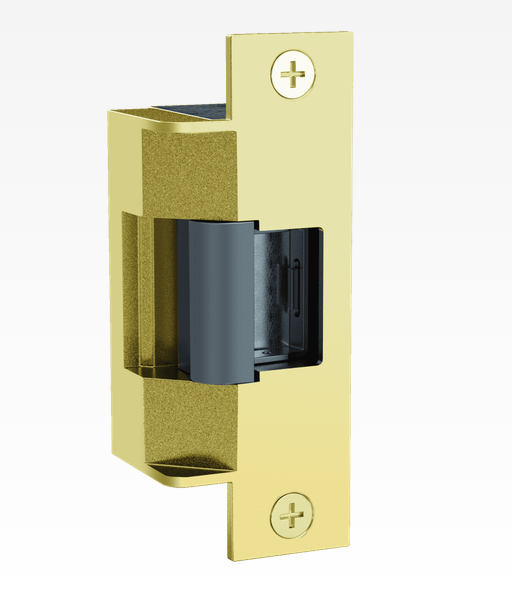

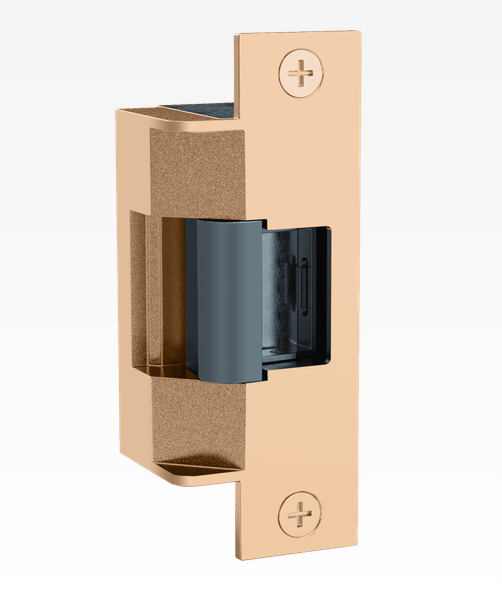

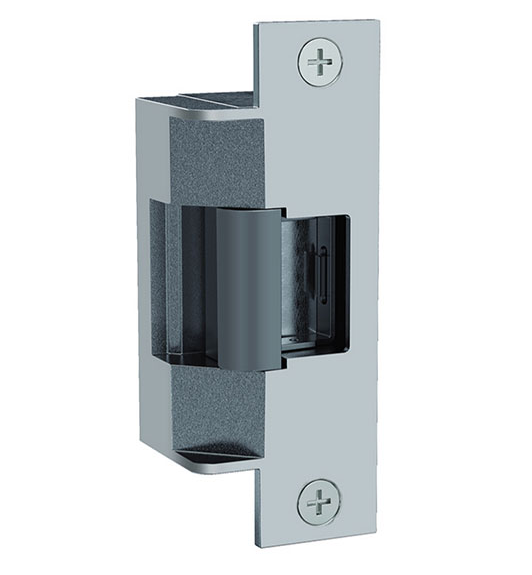

HES 7501 Grade 1 Electric Strike, Field Selectable (Safe/Secure), 4-7/8" x 1-1/4", 12/24 VDC

HES 7501 Grade 1 Electric Strike, Field Selectable (Safe/Secure), Satin Stainless Steel

The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4" throw.

Features:

• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Dual voltage 12 or 24 VDC/VAC
• Endurance 500,000 cycles
• Field selectable fail safe/fail secure
• Accommodates preload (fail secure only)
• Keeper shims for horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Strike body depth 1-11/16"
• 7501 Plug-in connector
• Trim enhancer

Certifications:

• ASTM E152 Fire Door Compliant

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door Compliant

• UL 1034 Burglary-Resistant Listed

• UL 10C Fire-Rated, 3 Hour Single Door [Fail Secure Only]

• UL 294 Listed
