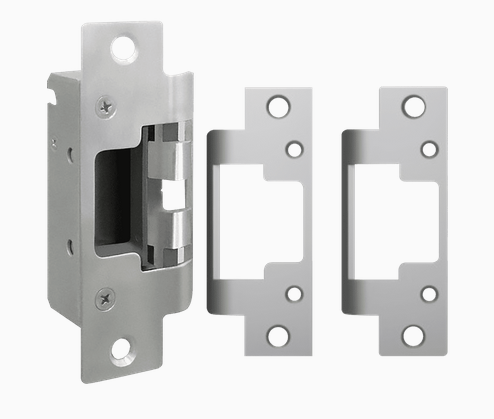

HES 8300C Complete 12/24VDC Electric Strike, Satin Stainless Steel
The 8300 Series is fire rated, high performance electric strike that features a unique concealed design.
The compact design of the 8300 Series is a great feature that goes well with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install.
- UL 10C, fire-rated, 3 hour (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- NFPA 80-07 compliant
- UL 1034 burglary-resistant listed and suitable for outdoor use
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- UBC-7-2-94, Uniform Building Code
- Patent #5,934,720; 8,146,966; 8,157,302
| Specifications |
|
|---|
