HES 8500 Fail Safe/Fail Secure, 12/24VDC Electric Strike - Body Only

HES 8500 Fail Safe/Fail Secure, 12/24VDC Electric Strike - Body Only

SKU: 8500-630

Brand : Hes

In Stock

Usually Ships Next Day

$432.50; $432.50
Unit price: per

Finish: 630 - Satin Stainless Steel

Product variants

Quantity:

Subtotal: $432.50

Questions? Live Chat, Email or Call 332-255-3200

Secured and trusted checkout with

Details

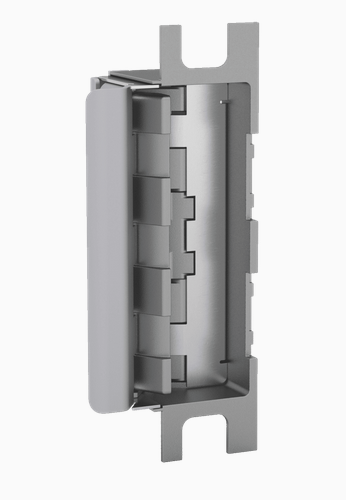

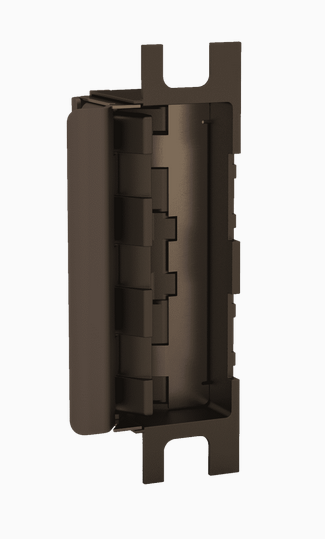

HES 8500 Fail Safe/Fail Secure, 12/24VDC Electric Strike - Body Only

The high performance 8500 Series is fire rated, compact, and features a unique concealed design.

The 8500 series is a unique electric strike that complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.

UL 10C-fire-rated, 3 hour (fail secure)
CAN4-S104(ULC-S104) fire door conformant
NFPA 80-07 Compliant
UL 1034 burglary-resistant listed and suitable for outdoor use
ANSI/BHMA A156.31, Grade 1
NFPA -252 fire door conformant
ASTM-E152 fire door conformant
Patents Pending

More Information

Specifications	Fire Rated: Yes Frame Application: Metal or Wood Holding Force: 1500 lbs. Keeper Size: 3/4" Operating Voltage: 12/24 VDC Function: Fail Safe/Fail Secure AMP Draw: .24 @ 12V .12 @ 24V Configuration: Universal For Use With: Mortise Locks
