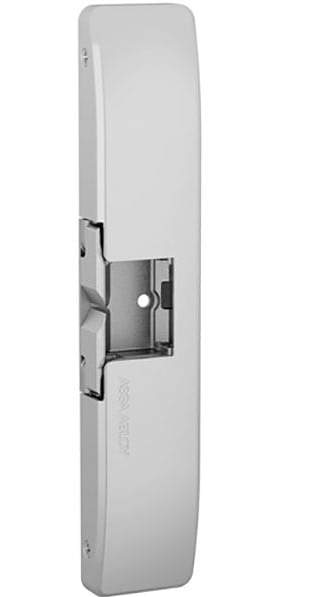

HES 9500 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Fire Rated

SKU: 9500-605-LBM

Brand : Hes

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$670.40
$670.40
Finish: 605
Optional Features:: LBM- Latchbolt Monitor
Subtotal: $670.40
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Installs in metal or wood frames
  • Non-handed
  • Field Selectable Fail Safe/Fail Secure
  • Accommodates rim exit devices with up to 3/4" Pullman Latch
  • Endurance 1 million cycles

Secured and trusted checkout with

HES 9500 Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Fire Rated

Works with rim exit devices up to 3/4" throw Pullman latchbolt

The 9500 Series Electric Strike is a three hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation.
The 9500 exceeds Grade 1 standards for strength and performance. It is field selectable for fail safe / fail secure operation, and for 12 or 24 VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire rated frames.

Features:

  • Installs in metal or wood frames (wood screws not included)
  • Separate base and decorative cover for easy adjustments
  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance 1 million cycles
  • Field selectable fail safe/fail secure
  • Horizontal adjustability
  • Non-handed
  • Internally mounted solenoid
Specifications
  • Function: Field Selectable (Safe/Secure)
  • Operation Voltage: 12VDC/24VDC
  • Amp Draw: .45 @ 12V, .25 @ 24V
  • Keeper Size: PK
  • Configuration: Centered
  • Faceplate Size: 9" x 1 3/4"
  • Holding Force: 1500 lbs.

Certifications:

  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • UL 305 listed
  • RoHS compliant
  • UL 10C fire rated, 3-hour single door (fail secure only)
  • CAN/ULC-S104 fire door conformant
  • NFPA-252 fire door compliant
  • ASTM-E152 fire door compliant
  • California Fire Marshal listed
  • NFPA 80-07 compliant
  • WHI fire door listed
UPC 722208641556
