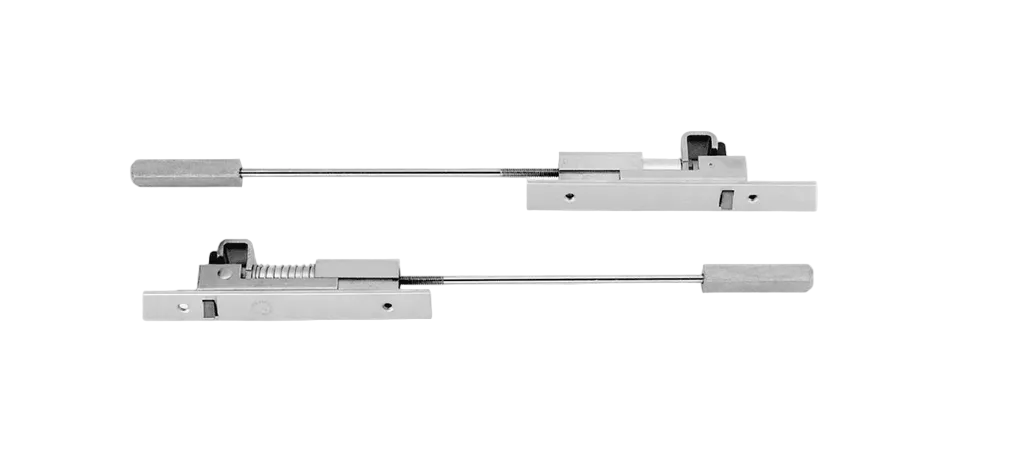

Ives FB31P Top and Bottom Automatic Flushbolt, Pair, 12" Rods, Metal Doors
- Only for use with metal doors
- Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened
- Low actuation forces—top bolt has no spring tension
- Non-handed
- Bolt throw is 3⁄4" with a 7⁄8" vertical adjustment
- Bolt backset is 3⁄4"
- Standard rod length is 12", which is measured from the center of the flush bolt body to the bolt tip
Certifications:
- Fits standard ANSI/BHMA A115.4 door frame preparations.
- UL10C Listed (3 hour) fire doors 8'0" x 10'0" when both top and bottom bolt used
| Specifications | Body Size: 1" W x 6 3⁄4" L x 2" D
Guide size: 1" W x 1 27⁄32" L x 27⁄32" H x 3⁄32" T Strike size: 15⁄16" W x 2 1⁄4" L x 1⁄16" T Rub plate size: 1 1⁄4" W x 1 11⁄16" L x 3⁄64" T Mounting hardware: 8-32 X 3⁄8" UFPHMS 10-12 X 1 1⁄4" Plastic anchor 6-32 X 3⁄8" FPHMS 6 X 3⁄4" FPHSMS 8 X 1" FPHSMS 10 X 1" FPHSMS |
|---|---|
| UPC | 722208645394 |
