Details

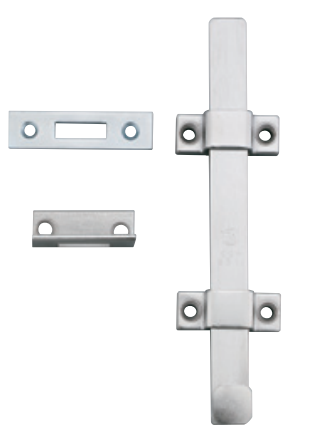

Ives SB453 Surface Bolt, Satin Chrome, 8"

  • Surface Bolt has 1 3/16" throw for maximum security.
  • Strong tension springs prevent creep.
  • Ideal for alltypes of doors.
  • Available 8" & 12" lengths.
  • Units packed with standard screws for added security.
  • Units packed with both a universaltop strike (US) and a mortise bottom strike (MS).
  • Constructed of heavy duty steel.

Certifications:

  • Meets ANSI/BHMA A156.16 L84161
  • UL listed 3 hour fire door, up to 10'0"
Read more
More Information
Specifications Dimensions:
Bar: 3/4" Wide x 1/4" Thick
Overall Width: 2 1/32"
Overall Projection: 1 5/16"
Top Strike: 1 1/2" Wide x 1 1/2" Long x 3/16" Thick
Bottom Strike: 1 5/8" Wide x 3 1/2" Long x 1/8" Thick
UPC 722208646469
