Johnson 1500SC Series Soft-Close Pocket Door Frame Kit for 80” Tall Doors

Johnson 1500SC Series Soft-Close Pocket Door Frame Kit for 80” Tall Doors

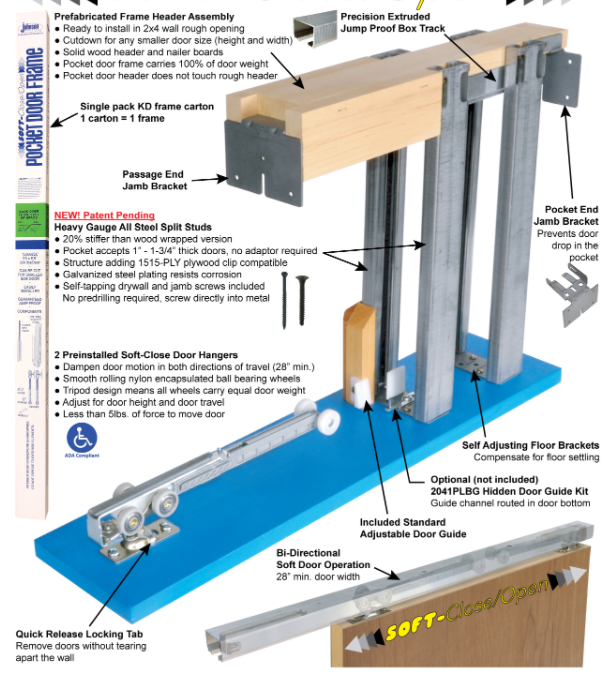

The 1500SC Series Pocket Door Frame is designed to soft-open and soft-close heavy solid core doors weighing up to 200lbs. Smooth ball bearing hanger wheels combined with soft-closing door operation make the 1500SC one of the finest pocket door installations available. The 1500SC is designed to be quickly installed into prepared 2 x 4 timber frame stud walls however, the 1500SC can also be adapted for use in various wall thicknesses and with various wall materials and structures. The 1500SC Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors.

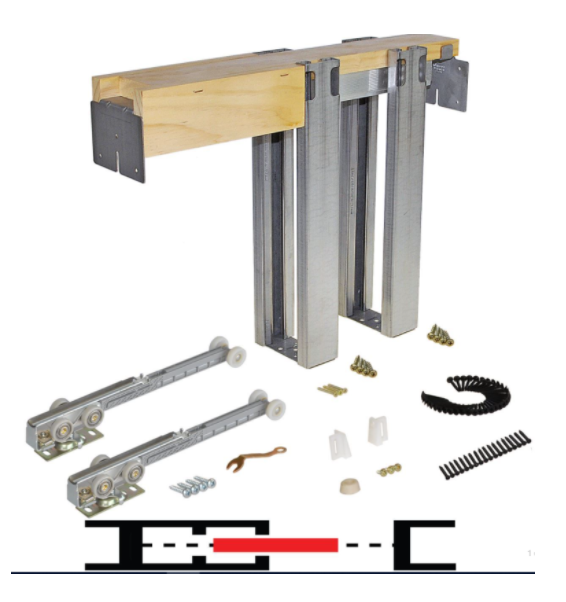

Johnson 1500SC Series Pocket Door Frame Kit Contents:

Header (Factory Assembled)

• 1- 100 Track Length
• 1- 512080 Passage End Jamb Bracket
• 1- 511592 Pocket End Jamb Bracket

________________________________________

• 6- Split Stud Lengths
• 2- 512085 Split Stud Floor Brackets
• 2- 1060 Soft-Close Hangers
• 1- 1550 Pocket Door Guide
• 1- 1513 Door Bumper
• 1- 1712 Adjustment Wrench
• Hardware Mounting Screws
