LCN 2035 STD Grade 1 Overhead Concealed Door Closer, Aluminum Finish, Size 5

SKU: 2035 STD 689-RH

Brand : LCN

In Stock

Usually Ships Next Day

$1,145.00; $1,145.00
Unit price: per

Handing: Right Hand

Right Hand Left Hand

Product variants

Quantity:

Subtotal: $1,145.00

Questions? Live Chat, Email or Call 332-255-3200

Secured and trusted checkout with

Details

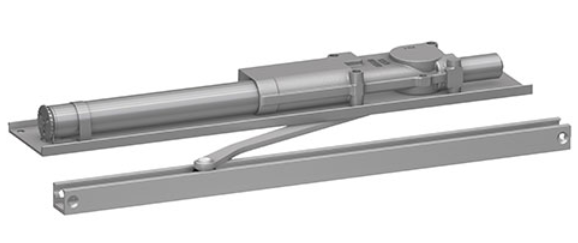

LCN 2035 STD Grade 1 Overhead Concealed Door Closer, Aluminum Finish, Size 5

The concealed 2030 Series PACER® is a heavy duty closer designed to fit in a narrow, minimum 1-3/4˝ aluminum transom. The single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.
The 2030 Series is UL & cUL listed for self-closing doors, without hold-open. Test and certified under ANSI Standard A156.4, Grade 1.

Standard 2030 Series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack. See 2030 Series page 9 & 10 for options.
Sized cylinders for interior doors to 4´6˝ and exterior doors to 3´6˝.
Handed for right or left swinging doors.

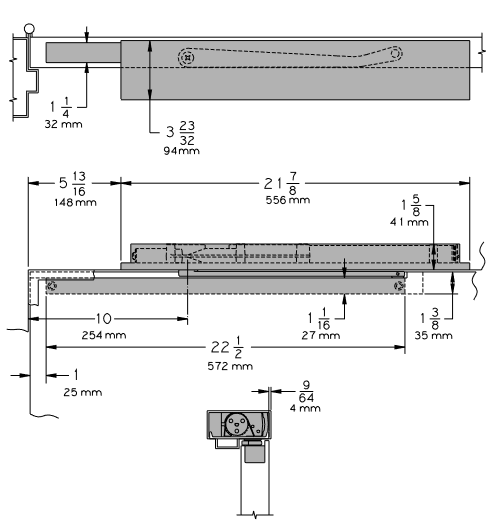

Aluminum frame requires minimum 1-3/4˝ (44 mm) x 4˝ (102 mm) tube.

More Information

Specifications	Mounting Group: Hydraulic Hold Open: No Cold Weather Fluid: Yes Mounting Style: Slide Track Handing: Handed Arm Type: Slide Track Arm, Low Profile Degree Swing: 180 Deg. Closer Size: 5 Type: Concealed Overhead Mounting Location: Header
UPC	722208646711
