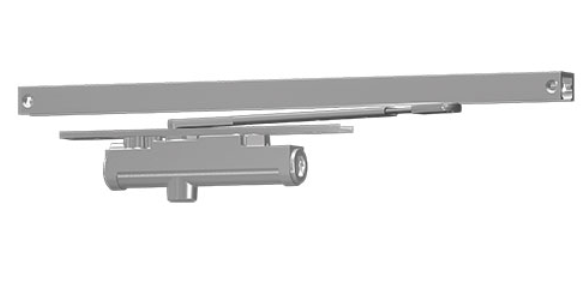

LCN 3133 Grade 1 STD Overhead Concealed Track Door Closer, Size 3

LCN 3133 Grade 1 STD Overhead Concealed Track Door Closer, Size 3

The concealed 3130 Series is designed to mount in a 1-3/4˝ interior door. The single lever arm and roller assembly provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
The 3130 Series is UL and cUL listed without hold-open for self-closing doors. Tested and certified under ANSI Standard A156.4, Grade 1.

• Standard 3130 Series closer shipped with standard arm, standard track and wood and machine screw pack.
• Sized cylinders for interior doors to 3´2˝.
• Handed for right or left swinging doors.
• Closers to meet ADA requirements.

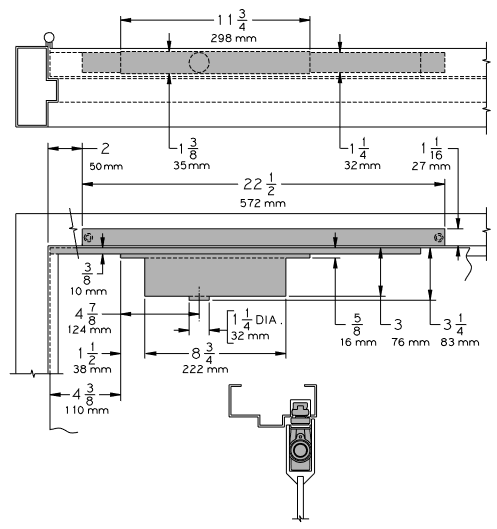

CONCEALED MOUNTING: For interior doors. Single acting cylinder and standard arm in top rail of door. Concealed track in head frame.
MAXIMUM OPENING: Templating allows 140°, trim permitting. 100° with optional bumper installed.
Adjustable hold-open points from 85° to 100°, with hold-open track
