Quick Overview
- Heavy Duty – ANSI Grade-1
- Includes 4010-3049 hold-open arm
- Hinge side/pull side mount
Secured and trusted checkout with

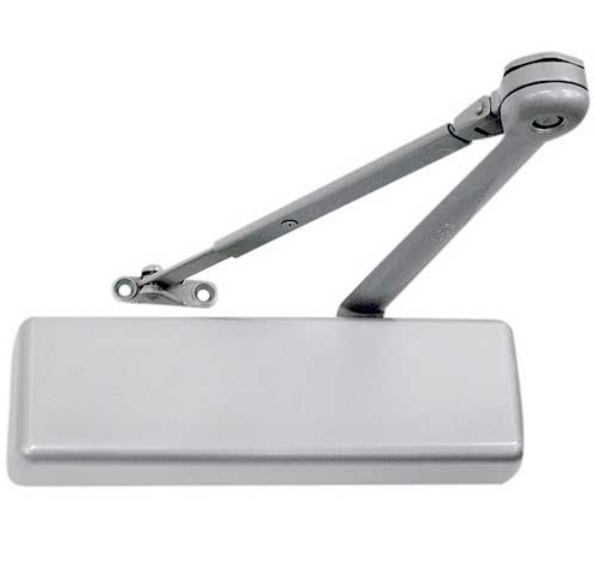

LCN 4011-H Door Closer with Hold Open Arm, Pull Side Mount
The 4011 heavy-duty closer meets demands for high-traffic, institutional areas and is designed for unique mounting applications. It meets ANSI/BHMA Grade 1 standards, and boast 30-year warranties. They feature the LCN Green Dial spring force indicator, which takes the guesswork out of adjustment.
- Adjustable Spring Size 1-5, includes Patented Green Dial
- For interior doors to 4’6″ wide and exterior doors to 3’6″ wide
- Peel-n-Stick templates – 2-1/2″ x 6″ Mounting Hole Pattern
- Includes 4010-3049 Hold-open arm, Provides hold-open function, adjustable at elbow
- Includes Standard Cylinder
- Includes Standard Cover

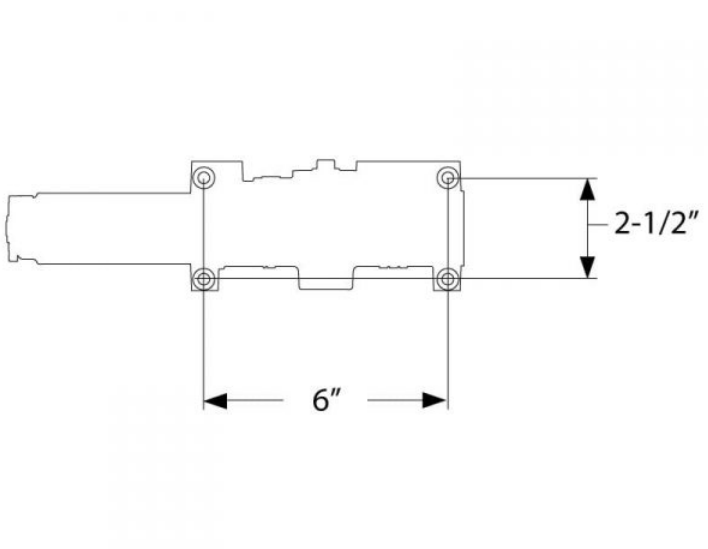

- Templating (Hole Pattern): 2 1/2" x 6"
- Body Constuction: Cast Iron Body
- Fasteners: Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts
