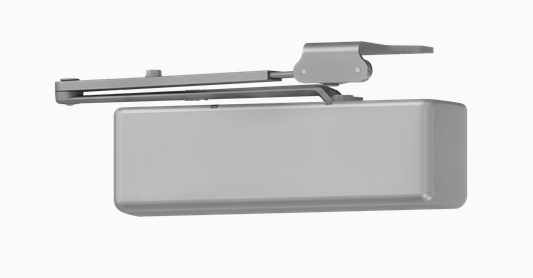

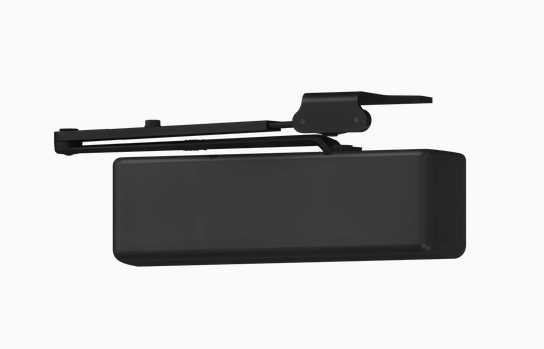

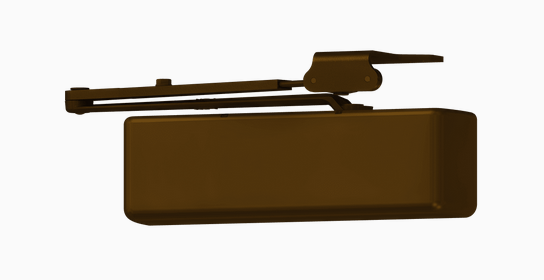

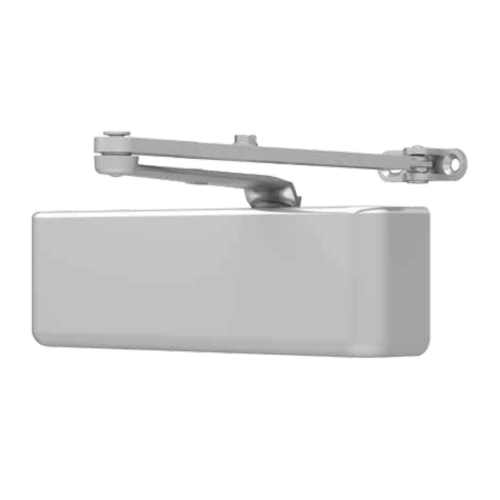

LCN 4040XP Rw/PA Heavy Duty Door Closer, Regular Arm with Parallel Arm Bracket

LCN 4040XP Rw/PA Heavy Duty Door Closer — Regular Arm with Parallel Arm Bracket

The LCN 4040XP is the most durable heavy-duty door closer in the LCN lineup, engineered for the most demanding high-traffic and high-abuse commercial applications. The Rw/PA configuration features a regular arm with parallel arm bracket, allowing push-side parallel arm mounting — ideal when the closer body needs to be concealed or protected from vandalism.

The 4040XP's "XP" stands for eXtra Protection — featuring a redesigned pinion, wider bearings, and a new V-shield seal that delivers 20% longer service life compared to standard closers.

Key Features

• 44% increased bearing load capacity over standard closers
• Strongest pinion ever — 3/4" journal diameter for maximum torque resistance
• Widest bearing ever — 5/8" for superior load distribution
• New V-shield seal with 20% longer service life
• Cast iron body with forged steel arm — built for abuse environments
• Double heat-treated steel pinion
• All-weather hydraulic fluid — reliable in extreme temperatures
• Tri-mount capable — hinge side (pull), top jamb (push), or parallel arm (push)
• Maximum 180° opening with adjustable hold-open points
• Peel-n-Stick templates for fast, accurate installation
• Includes self-reaming and tapping screws (SRT) and thru bolts

Specifications

• Body: Cast Iron
• Arm: Forged Steel, Regular Arm with Parallel Arm Bracket
• Mounting: Tri-Mount (Hinge Side, Top Jamb, Parallel Arm)
• Mounting Hole Pattern: 2-1/4" x 5"
• Maximum Opening: 180°
• Application: High-traffic commercial and institutional doors
