LCN 6440XP 689 COMPACT Low Energy Surface Mounted Automatic Door Operator Module and Closer Kit
LCN 6440XP 689 COMPACT Low Energy Surface Mounted Automatic Door Operator Module and Closer Kit
LCN 6440XP 689 COMPACT Low Energy Surface Mounted Automatic Door Operator Module and Closer Kit

LCN 6440XP 689 COMPACT Low Energy Surface Mounted Automatic Door Operator Module and Closer Kit

SKU: 6440XP-689

Brand : LCN

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,405.00
$1,405.00
Finish: 689 - Aluminum
Subtotal: $1,405.00
Questions? Live Chat, or Call 332-255-3200

Quick Overview

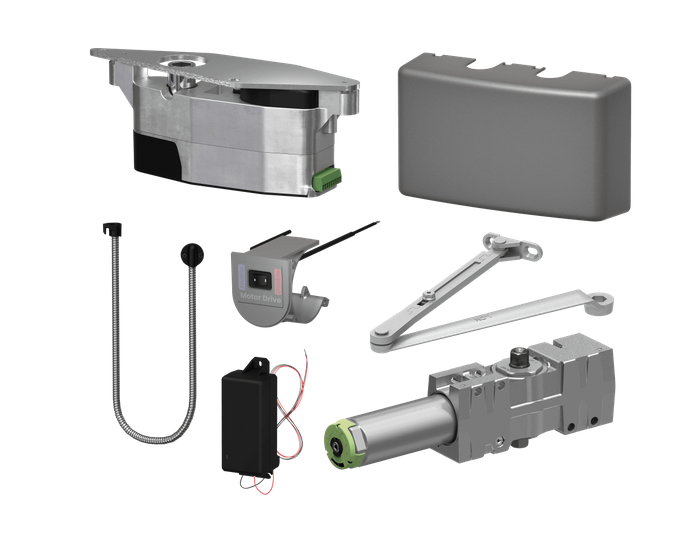

Parts Included:

  • 4040XP Standard cylinder
  • RwPA arm
  • Gearmotor assembly, mounting plate, and screws
  • Cover and switch insert
  • Wall adapter
  • Door loop
  • 30 ft of copper wire

Secured and trusted checkout with

Details

LCN 6440XP 689 COMPACT Low Energy Surface Mounted Automatic Door Operator Module and Closer Kit

The unique modular design makes the COMPACT Series simple and cost-effective for upgrading new or existing openings.

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment.

The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.

  • 24V input for safe door-mount applications
  • Configurable power input to allow for simple wall plug-in or external power supply
  • Compact user interface for electronic feature adjustments
  • Simple calibration set-up with visible and audible feedback
  • Adjustments via mechanical closer to meet closing force preferences
  • Power boost to overcome interior stack pressure and allow for lower spring settings
  • Compatible with 3 different 4040XP mounting configurations
  • Fire input to deactivate actuation upon signal
  • Dedicated input for actuation signal (hardwired or wireless receiver)
  • Certified to UL 10C, UL 325 and UL 228
  • Certified to ANSI Standard A156.19
  • Compliant with ANSI Standard A117.1

Compatibility:

  • Interior openings only
  • Any hardwired actuator
  • Any RF receiver and actuator/transmitter in the LCN 8310 Series
Read more
More Information
Specifications
  • Non-Handed
  • Mounting options-Mounts directly onto 4040XP:
    • Pull side (door mount)
    • Parallel arm (door mount)
    • Top jamb (push side frame mount)
  • Input voltage: 24 VDC (2A to operate)
  • On-board power supply: 24VDC (75mA to power RF receiver)
  • Controller: Compact UI within module
  • Header dimensions: 12 1⁄4" W x 7 1⁄4" H x 3 3⁄4" D
  • Memory after power loss: Yes
  • Fire input: Yes
  • Door weight limit: 185 lbs
  • Power boost: Yes
  • Strike coordination: Capable with external power supply and logic board
  • Sensor input: No
  • Obstruction detection: Yes
  • Certifications: ANSI 156.19; UL 228/325, UL 10C
