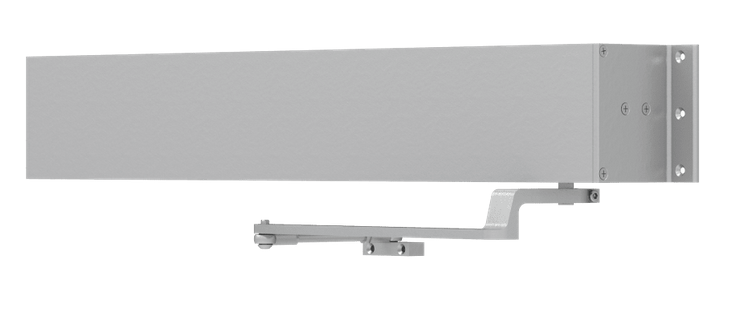

LCN 9542-REG Grade 1 Surface Mounted Electromechanical Benchmark Door Operator, 36" Header, Clear Anodized Aluminum

LCN 9542-REG Grade 1 Surface Mounted Electromechanical Benchmark Door Operator, 36" Header, Clear Anodized Aluminum

SKU: 9542-REG 36-RH 628

Brand : LCN

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$4,505.00
$4,505.00
Handing: Right-Handed
Subtotal: $4,505.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

LCN 9542-REG Grade 1 Surface Mounted Electromechanical Benchmark Door Operator, 36" Header, Clear Anodized Aluminum

The 9540 Series is ADA compliant and is a two-in-one swing door operator.

The 9540 Senior Swing by LCN is an ADA door operator that is a two-in-one swing door operator. Senior swing operator when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

  • Grade 1 - ANSI A156.19, UL325/228, UL1998, ADA, 100 Hour Salt Spray
  • Meets BAA - Buy American Act
  • All Weather Fluid
  • Handed
  • Combined width min. 33" to 48"
  • Single door width per leaf 33" min. to 48" max.
  • 2 year warranty
  • Machine Screws (MS)
  • Single door, surface mount, offset pivot
  • Butt hinge, push side
  • Regular Arm (3077)
  • 628 Aluminum, Anodized
Read more
More Information
Specifications
  • Type: Surface
  • Back Check: Adjustable
  • Cold Weather Fluid: Yes
  • Hold Open: Yes
  • Mounting Location: Push Side
  • Handing: Handed
  • Arm Type: Double Lever Arm, Regular
  • Delay: Yes
  • Mounting Group: Electromechanical
  • Cover: Less Cover
  • Hold Open Type: Electric
  • Bracket: Available
  • Physically Handicapp: Yes
  • Degree Swing: 90 Deg.
  • Door Size: 33" to 48"
  • Degree Hold Open: 90 Deg.
  • Door Weight: 400 lbs.
  • Mounting Style: Offset
  • Screw Type: Machine
  • Reveal Size: Up to 10"
