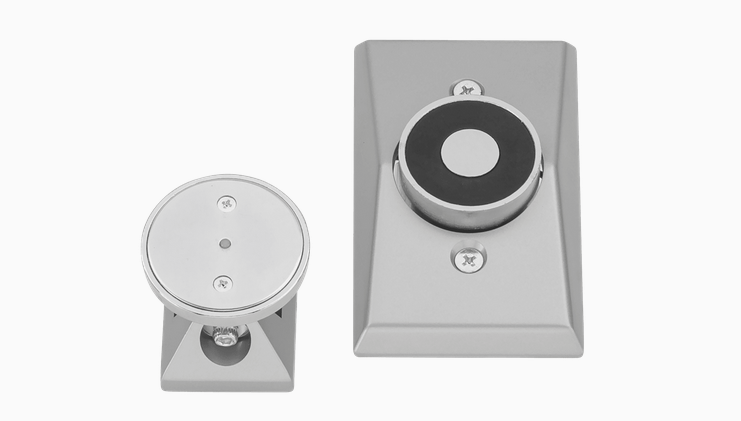

LCN SEM7850 Electromagnetic Door Holder/Release - Standard Profile Recessed Wall Mount, Aluminum

SKU: SEM7850 689

Brand : LCN

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$445.00
$445.00
Subtotal: $445.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

LCN SEM7850 Electromagnetic Door Holder/Release - Standard Profile Recessed Wall Mount, Aluminum

All SEM series magnets are UL listed for smoke barrier or labeled fire doors.

Tested and certified under ANSI Standard A156.15. heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door.

SEM 7850 Magnet Features:

  • Tri-voltage design with 35lbs. of holding force
  • Standard profile recessed wall-mounted
  • Now available armature extensions from LCN
  • SEM 7850 magnets are shipped with die cast housing, cover, armature and WMS screw pack
  • Suitable for use in pocket door installations
  • UL listed for smoke barrier or labeled fire doors
Specifications
Certifications
Grade 1- ANSI A156.15, UL 10C for metal smoke barrier or labeled door, Life Safety Code, NFPA 101, 100 Hour Salt Spray, Meets BAA - Buy American Act
Voltage
Tri-voltage design with 35 lbs. of holding force
Housing
Die cast
Fasteners
Wood and machine screw pack
Mounting
Standard profile recessed wall mount
2˝ (51 mm) x 4˝ (102 mm) x 1-1/2˝ (38 mm)
Total Projection
3-5/8˝ (92 mm)
Suitable for use in pocket door installations
