Quick Overview

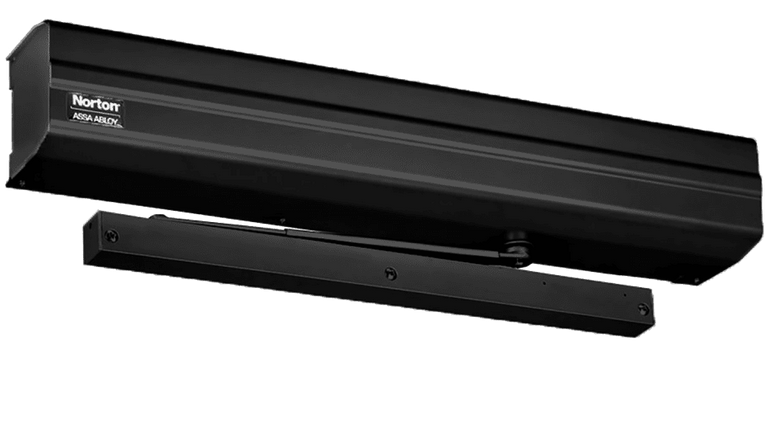

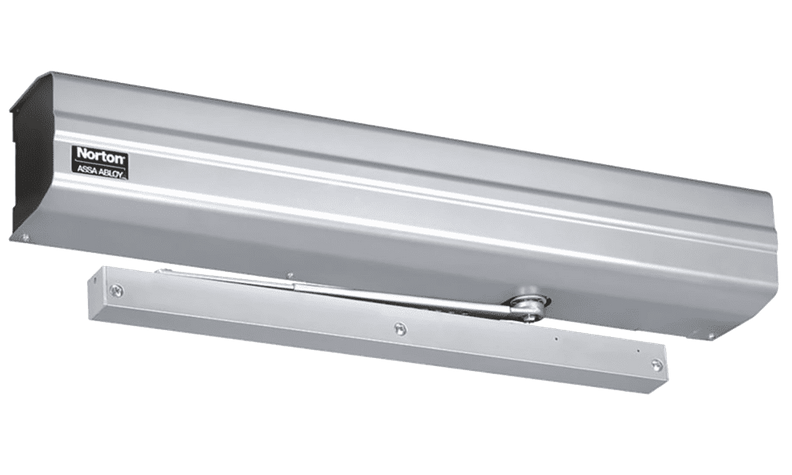

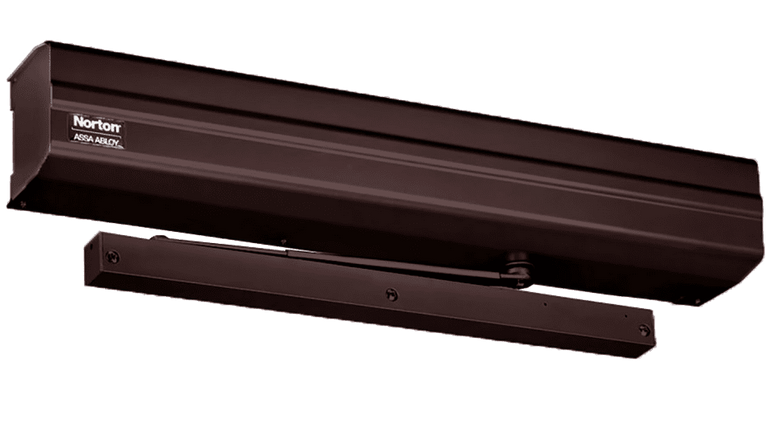

Norton 5740 Low Energy Surface Mounted Electrohydraulic Door Operator Universal Kit
Operator, Cover, Push and Pull Arms
The 5700 Series low energy operator is a reliable ADA solution comprising of the Norton Rixson heavy-duty 1600 Series door closer. The use of a hydraulic closer ensures quiet, consistently smooth operation ideal in applications where doors are typically operated manually but can also be activated via door switches for automatic operation. The 5700 Series offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
- Non-handed
-
Push or pull side mounting
-
For use on interior and exterior doors with medium traffic
-
Comprises Norton Rixson 1601 adjustable mechanical door closer
-
Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices
-
Powers and coordinates function of electric strikes and other accessories
-
Onboard power supply: 24VDC (1.1A)
-
Maximum door weight: 250lbs.
- Minimum door width: single (29"), double (30")
Certifications:
-
ANSI/BHMA A156.19
-
ANSI/BHMA A156.4
-
Americans with Disabilities Act (ADA) Compliant
-
Environmental Product Declaration (EPD)
-
UL 10C Positive Pressure up to 3 hours
- UL-cUL Listed
Secured and trusted checkout with
Norton 5740 Low Energy Surface Mounted Electrohydraulic Door Operator Universal Kit
Operator, Cover, Push and Pull Arms
The 5700 Series low energy operator is a reliable ADA solution comprising of the Norton Rixson heavy-duty 1600 Series door closer. The use of a hydraulic closer ensures quiet, consistently smooth operation ideal in applications where doors are typically operated manually but can also be activated via door switches for automatic operation. The 5700 Series offers basic automated door functions and is designed for quick set-up, making it easy to specify and install.
- Non-handed
-
Push or pull side mounting
-
For use on interior and exterior doors with medium traffic
-
Comprises Norton Rixson 1601 adjustable mechanical door closer
-
Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices
-
Powers and coordinates function of electric strikes and other accessories
-
Onboard power supply: 24VDC (1.1A)
-
Maximum door weight: 250lbs.
- Minimum door width: single (29"), double (30")
Certifications:
-
ANSI/BHMA A156.19
-
ANSI/BHMA A156.4
-
Americans with Disabilities Act (ADA) Compliant
-
Environmental Product Declaration (EPD)
-
UL 10C Positive Pressure up to 3 hours
- UL-cUL Listed
