Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6
Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6
Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6

Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6

SKU: 7500-689

Brand : Norton

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$281.90
$281.90
Finish: 689 - Aluminum
Arm Feature: Tri-Pack, Multi-Size 1-6 (Standard)
Subtotal: $281.90
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Heavy-Duty, ANSI A156.4, Grade 1 certified
  • Adjustable spring size 1-6
  • Regular, top jamb or parallel arm mount

Secured and trusted checkout with

Details

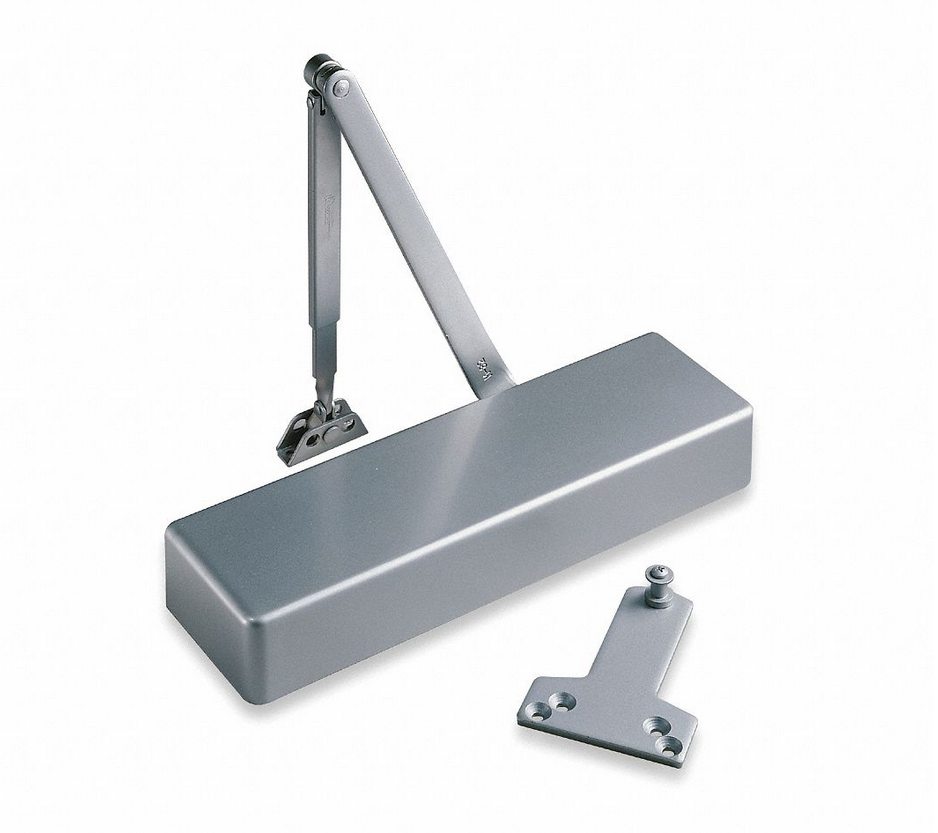

Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6

The 7500 Series Door Closer offers the ideal combination of excellent performance, strength and durability. It works for interior or exterior doors, in facilities that demand reliability.

Features:

  • Tri-Style® packaging for regular, top jamb or parallel arm mounting
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Exceeds 25 million cycles
  • Non-handed
  • Rack-and-pinion design
  • Cast aluminum body
  • Stacked valves

Certifications:

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • This product is manufactured in an ISO 9001 facility
Read more
More Information
Specifications
  • Templating (Hole Pattern): 2 3/8" 6 3/4"
  • Usage: Heavy Duty
  • Mounting Options: Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
  • Body Construction: Cast Aluminum Body
  • Spring Size: Adjustable 1-6
  • ANSI/BHMA Standard: ANSI/BHMA A156.4, Grade 1 Certified
  • ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
  • Fire Rating: UL/cUL listed up to 3 hours
  • Cover: Full Cover
  • Handing: Non-handed
  • Door Application: Hollow Metal of Wood
UPC 722208640139
Literature
literature
Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6
Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6

Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6

Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6
Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6
Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6

Norton 7500/7500H Grade 1 Tri Mount Door Closer, Regular Arm, Size 1 to 6

$281.90
Finish: 689 - Aluminum
Arm Feature: Tri-Pack, Multi-Size 1-6 (Standard)
Compare color
  • 689-aluminum
  • 695-dark-bronze
  • bsp-black-suede-powder-coat
Click on color/pattern to compare, click and drag images to reorder
