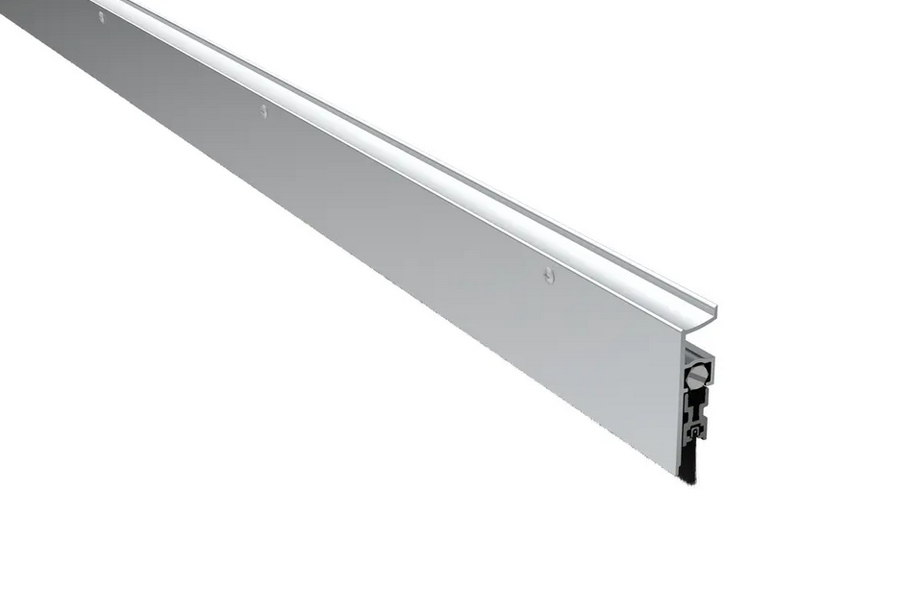

Pemko 412CRL Surface Mounted Automatic Door Bottom with Sponge Neoprene Insert, 3/4" Max Drop
Pemko 412CRL Surface Mounted Automatic Door Bottom with Sponge Neoprene Insert, 3/4" Max Drop

Pemko 412CRL Surface Mounted Automatic Door Bottom with Sponge Neoprene Insert, 3/4" Max Drop

SKU: 412CRL36

Brand : Pemko

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$75.00
$75.00
Finish: Clear Anodized Aluminum
Length: 36''
Subtotal: $75.00
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Flexible at high and low temperatures
  • Resists deterioration from oily substances
  • Slightly compressible

Secured and trusted checkout with

Details

Pemko 412CRL Surface Mounted Automatic Door Bottom with Sponge Neoprene Insert, 3/4" Max Drop

The handed 412 Series Surface Mounted Automatic Door Bottom is designed to reduce light, sound, smoke, and fire when the door is closed.

  • Handed and disassembly of the mechanism is required to reverse the hand

  • Surface Mounted

  • Seals up to a 3/4" gap under the door

  • Recommended gap is 1/2"

  • Smoother action positive seal mechanism: Aluminum case encloses a movable drop-bar seal actuated by a jamb-contacting plunger during door closure, providing an effective seal

  • Most models available with nylon brush (NB) seals. Nylon filaments conform extremely well to irregular surfaces such as carpet, stone and grout lines

  • End plates are provided for all mounting applications

  • Drop-bar seal actuation mechanism (all models) ensures hinge-side actuation, preventing seal skidding and door hang up during closure

  • Provided at NET length

  • Can be trimmed down by as much as 2" in the field (stock lengths only).
Read more
More Information
Specifications

Certifications:

  • GREENGUARD Gold Certified

  • UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

  • ASTM E-283-04 (2012)

  • ASTM E 90-2009

  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
