Pemko 566 Offset Half Saddle Threshold - 3" by 1"

Pemko 566 Offset Half Saddle Threshold - 3" by 1"

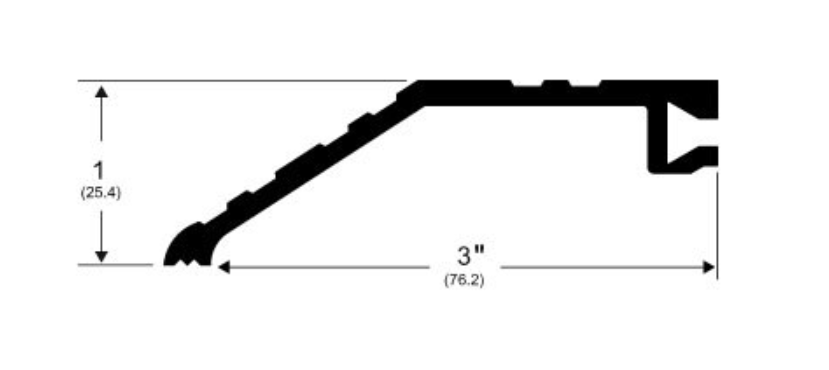

Measuring 3" inches in width and 1" in height with a customized in length, the 566 Series Offset Half Saddle Threshold is designed to create a smooth transition between different floor surfaces, commonly used when meeting tile or carpet on one side. This aluminum threshold, with a fire-rated construction, is specifically crafted to accommodate a 1/2" height change in floor surfaces.

• Half Saddle/Offset Saddle thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length.

• Integrated channel to connecting thermal keys

• Wood screw standard, other fasteners available

• Used when meeting tile or carpet on one side

• Fire rated

Certifications:

• UL 10C positive pressure

• UL 4L10 listed

• ANSI/BHMA A156.21 Thresholds
