Pemko CFS83CP-HD1 Continuous Geared Hinge, Full Surface, Center Pivot, Clear Aluminum, Heavy Duty 83"

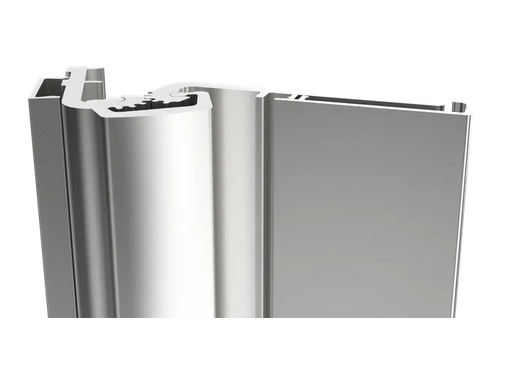

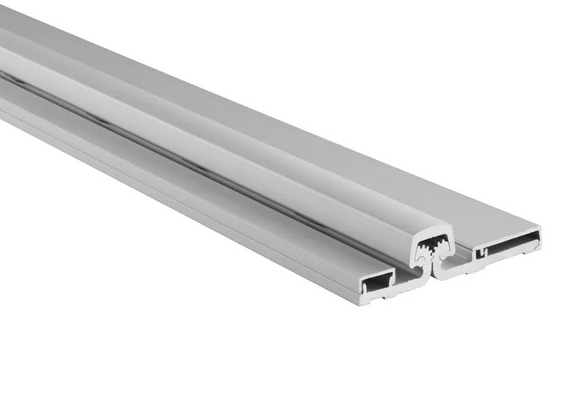

The FS_CP Full Surface Center Pivot Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame.

  • Applied to exposed surfaces of the door and frame

  • Used to replace butt hinges

  • Easy to install on exposed surfaces of the door and frame

  • Hollow metal door and frame manufacturers’ standard

  • Special hinge reinforcements are not required

  • Removal of hinge reinforcements in the door and frame is not advised

  • Guaranteed for the life of the opening against defects in material or workmanship

Certifications:

  • Health Product Declaration (HPD)

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

  • ANSI/BHMA Standard A156.26



Read more
More Information
Specifications
  • Grade: Grade 1
  • Hinge Material: Aluminum
  • Hinge Mounting Type: Full Surface
  • Hinge Strength: Heavy Weight
  • Handing: Non-handed
  • Fastener: Teks, Thru Bolts
  • Fastener Type: Self Drilling, Thru Bolts
  • Door Thickness: 1 3/4"
  • Maximum Door Width: 4'
  • Hinge Length: 83"
  • Maximum Swing: 180°
  • Minimum Hinge Clearance: 1/16"
  • Weight: 1.29lbs. per foot
