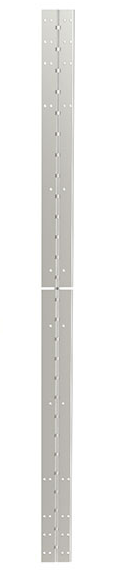

Pemko CFS83HD1-M Heavy Duty PemKonnect Modular Full Surface Continuous Gear Hinge, 83"
Pemko CFS83HD1-M Heavy Duty PemKonnect Modular Full Surface Continuous Gear Hinge, 83"

Pemko CFS83HD1-M Heavy Duty PemKonnect Modular Full Surface Continuous Gear Hinge, 83"

SKU: CFS83HD1-M

Brand : Pemko

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$232.80
$232.80
Subtotal: $232.80
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

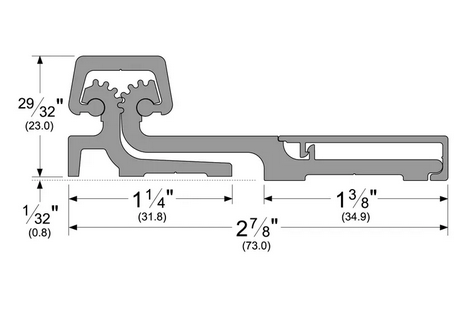

Pemko CFS83HD1-M  Heavy Duty PemKonnect Modular Full Surface Continuous Gear Hinge, 83"

The FS Series Full Surface Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This PemKonnect® modular version is primarily designed for freight savings and ease of transportation.

  • Applied to the exposed surfaces of the door and frame

  • Removal of hinge reinforcements in the door and frame is not advised

  • Length: 83"

  • Special hinge reinforcements are not required

  • FirePins are required on 3-Hour (A-Label) assemblies

Read more
More Information
Specifications
  • Grade: Grade 1
  • Hinge Material: Aluminum
  • Hinge Mounting Type: Full Surface
  • Hinge Strength: Heavy Weight
  • Handing: Non-handed
  • Fastener: Teks
  • Fastener Type: Self Drilling
  • Door Thickness: 1 3/4"
  • Maximum Door Width: 4'
  • Bearing Space: 3"
  • Hinge Length: 83"
  • Maximum Swing: 180°
  • Minimum Hinge Clearance: 1/16"
  • Weight: 1.29lbs. per foot
