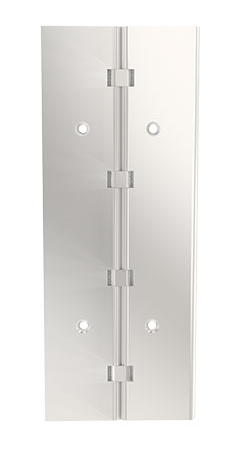

Pemko CFS12HD1-M Modular Hinge Extension, 12 Inch, Center Segment, Clear Anodized
Pemko CFS12HD1-M Modular Hinge Extension, 12 Inch, Center Segment, Clear Anodized

Pemko CFS12HD1-M Modular Hinge Extension, 12 Inch, Center Segment, Clear Anodized

SKU: CFS12HD1-M

Brand : Pemko

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$61.85
$61.85
Subtotal: $61.85
Questions? Live Chat, or Call 332-255-3200

Quick Overview

  • Hinge segments fit together easily
  • ANSI/BHMA A156.26 and UL certified
  • Equal number of bearing as a traditional continuous hinge
  • Can be cut in field

Secured and trusted checkout with

Details

Pemko CFS12HD1-M  Modular Hinge Extension, 12 Inch, Center Segment, Clear Anodized

The FS Series Full Surface Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This PemKonnect® modular version is primarily designed for freight savings and ease of transportation.

  • Easy to transport + decrease in freight damage, shipping costs, storage space
  • No extra tools needed for assembly
  • Meets building construction and fire code requirements
  • Supports the same weight requirements
  • Easily modified for custom lengths
  • Hollow metal door and frame manufacturers’ standard reinforcement is acceptable

  • Applied to the exposed surfaces of the door and frame

  • Removal of hinge reinforcements in the door and frame is not advised

  • Length: 12"

  • Special hinge reinforcements are not required

  • FirePins are required on 3-Hour (A-Label) assemblies

Read more
More Information
Specifications
  • Grade: Grade 1
  • Hinge Material: Aluminum
  • Hinge Mounting Type: Full Surface
  • Hinge Strength: Heavy Weight
  • Handing: Non-handed
  • Fastener: Teks
  • Fastener Type: Self Drilling
  • Door Thickness: 1 3/4"
  • Maximum Door Width: 4'
  • Bearing Space: 3"
  • Hinge Length: 12"
  • Maximum Swing: 180°
  • Minimum Hinge Clearance: 1/16"
  • Weight: 1.29lbs. per foot
