Pemko DSHP01C Double Swing Continuous Geared Hinge

SKU: DSHP01C-RH

Brand : Pemko

In Stock

Usually Ships Next Day

Handing:: Right Hand

Right Hand Left Hand

Product variants

Quantity:

Subtotal: $685.00

Questions? Live Chat, Email or Call 332-255-3200

Secured and trusted checkout with

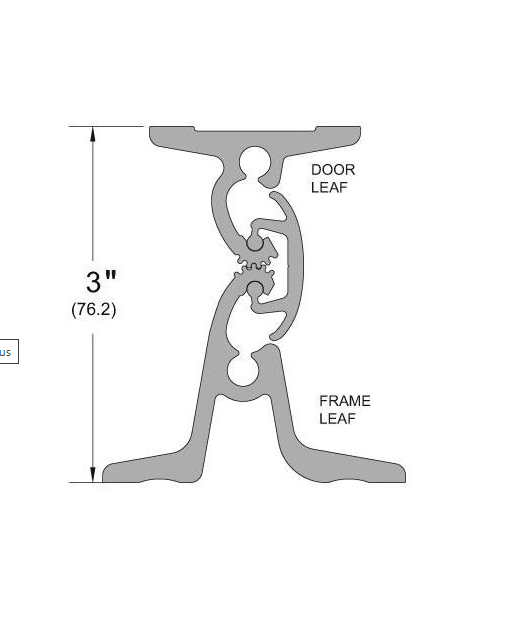

Pemko DSHP01 Double Swing Continuous Geared Hinge

Swings 100-degrees maximum in both directions
Combined with the Emergency Release Stop (ERS), this hinge is ideal for Behavioral Health applications.

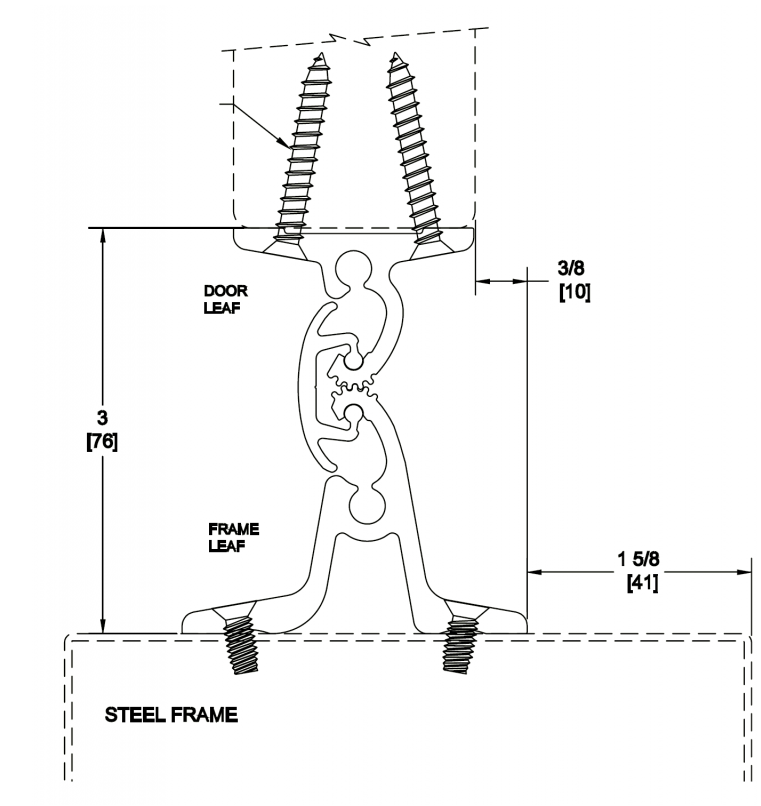

Designed to be used in a cased opening
Finish: Clear Anodized Aluminum
Size: 84" for 7' 0" Opening (Contact us for more Sizing)
BHMA Certified – Tested for performance with regards to the requirements in:
ANSI/BHMA A156.26 – Continuous Hinges

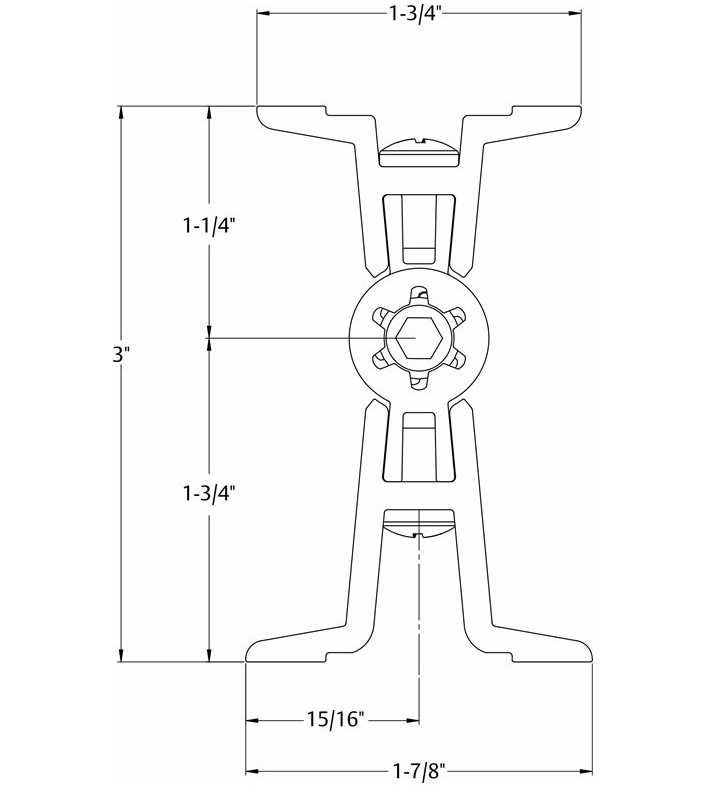

Specifications	Material: 6063-T6 Aluminum Aloy and Temper Finish: C (Clear Anodized) Width: 2 29/32" (73.82 mm) Height: 1 23/32" (43.66 mm) - Door Leaf; 2 1/2" (63.5 m) - Frame Leaf Weight: 10 lbs.
UPC	722208646179
