Pemko CFM83HD1 Full Mortise Geared Continuous Hinge, Clear Anodized Aluminum
SKU:
CFM83HD1
Brand : Pemko
In Stock
Usually Ships Next Day
- $146.50
- $146.50
- Unit price
- per
Subtotal:
$146.50
Questions? Live Chat, Email or Call 332-255-3200
Secured and trusted checkout with

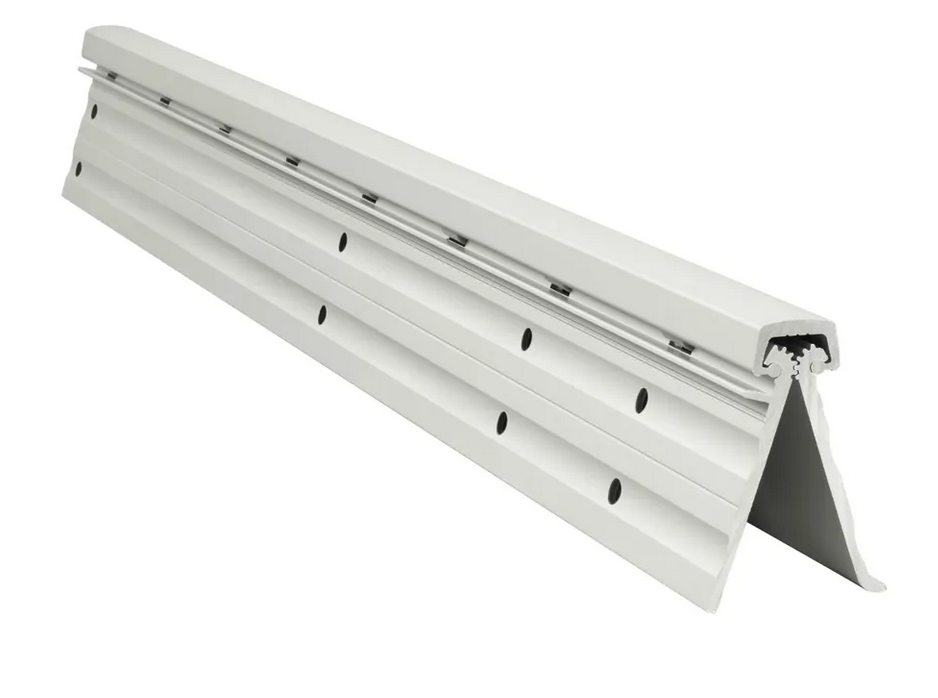

Pemko CFM83HD1 Full Mortise Geared Continuous Hinge, Clear Anodized Aluminum, 83"
The FM Series Full Mortise Continuous Geared Hinge is designed for new door applications, and is available in standard, heavy, and extra heavy duty models. This hinge, which is applied to the frame rabbet and door edge to conceal both leaves, is also available in our PemKonnect® modular version that is primarily designed for freight savings and ease of transportation. Additional options include electric and hospital tip modification, and FirePins.

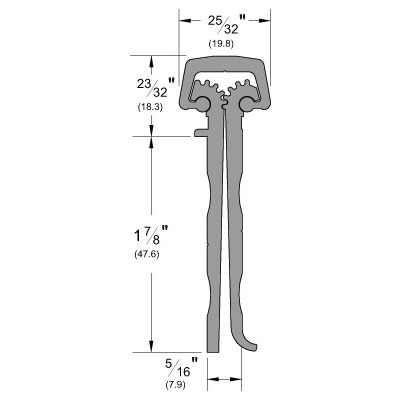

- Minimum Hinge Clearance: 5/16"
- Cap Width: 25/32"
- Leaf Height (to flange/frame edge side): 1 7/8"
- Overall Hinge Height: 11/16"
- Size: 83"
- Applied to conceal both leaves
- Fasteners are #12-24 x 11/16” Flat Head Undercut, Type C, thread-forming fasteners, no tapping required
Features:
- Packed in a 45" box
- Hinge segments fit together easily
- ANSI/BHMA A156.26 and UL certified
- Equal number of bearing as a traditional continuous hinge
- Can be cut in field
Certifications:
-
Environmental Product Declaration (EPD)
-
Health Product Declaration (HPD)
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ANSI/BHMA Standard A156.26
| Specifications |
|
|---|---|
| UPC | 722208640580 |
