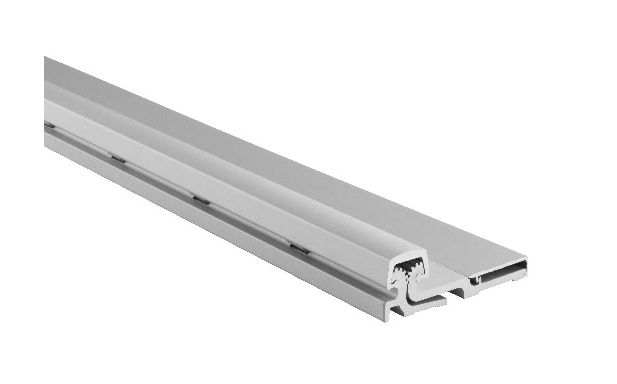

Pemko CFS83HD1 Full Surface Continuous Gear Hinge, Heavy-Duty 83"

Pemko CFS83HD1 Full Surface Continuous Gear Hinge, Heavy-Duty 83"

Designed mainly for retrofit work, and are applied to the exposed surfaces of the door and frame.

• Weight-bearing (per BHMA standard ANSI/BHMA A156.26-2006) 27 bearings, door weight = 540 lbs.
• 12 fasteners required for each leaf
• 6″ between bearing centers

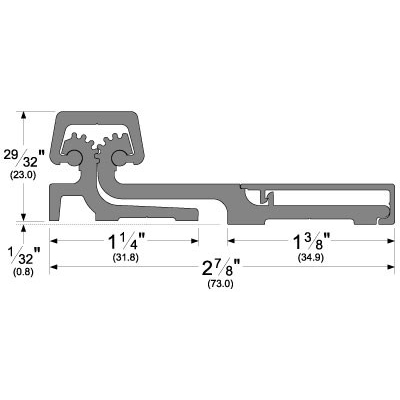

• Width:  1 1/4” (frame side – leaf)
• Width: 1 3/8” (door side – leaf)
• Cap Width: 25/32”
• Height: 29/32” (total height of hinge)
• Length: 83"
• HD1 hinges conform to Grade 2-150, Grade 1-300, and Grade 1-600 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006
• No restrictions on frame gauge and wall conditions
• No restriction on cutting hinges in field
• No special cutting instructions or voided warranties
• No special door and frame preps up to and including 90-minute doors
• Finish: Clear Anodized Aluminum
