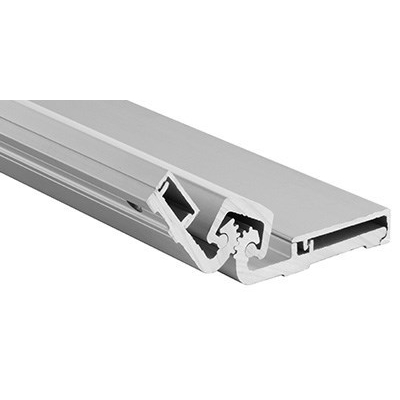

Pemko CFS83CP-HD1 Full Surface Center Pivot Continuous Gear Hinge, Heavy-Duty

Pemko CFS83CP-HD1 Full Surface Center Pivot Continuous Gear Hinge, Heavy-Duty

Designed mainly for retrofit work, and are applied to the exposed surfaces of the door and frame. Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces.

• Weight-bearing (per BHMA standard ANSI/BHMA A156.26-2006) 27 bearings, door weight = 540 lbs
• 12 fasteners required for each leaf

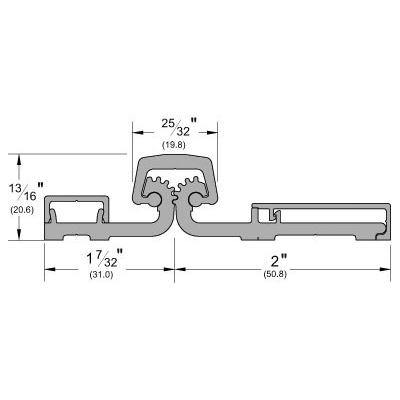

• Width: 1 3/16” (frame side – leaf)
• Width: 2” (door side – leaf)
• Cap Width: 25/32”
• Height: 3/4” (total height of hinge)
• Length: 83″
• Fire Rated – UL10C – Positive Pressure
• Special hinge reinforcements are not required
• HD1 hinges conform to Grade 2-150, Grade 1-300, and Grade 1-600 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006
