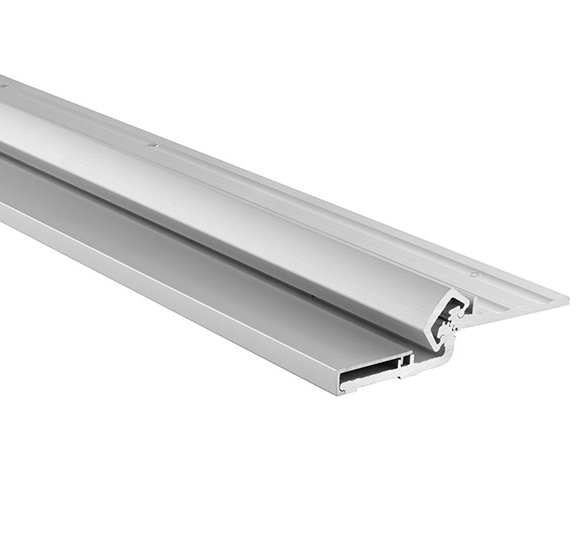

Pemko CHS83HD1 Half Surface Continuous Gear Hinge (Door Leaf Mounted to Door Face), Clear Anodized Aluminum, Heavy Duty 83"
Pemko CHS83HD1 Half Surface Continuous Gear Hinge (Door Leaf Mounted to Door Face), Clear Anodized Aluminum, Heavy Duty 83"

Pemko CHS83HD1 Half Surface Continuous Gear Hinge (Door Leaf Mounted to Door Face), Clear Anodized Aluminum, Heavy Duty 83"

SKU: CHS83HD1

Brand : Pemko

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$225.00
$225.00
Subtotal: $225.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Pemko CHS83HD1 Half Surface Continuous Gear Hinge (Door Leaf Mounted to Door Face), Clear Anodized Aluminum, Heavy Duty 83"

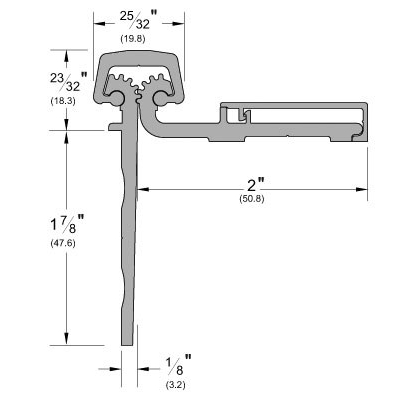

The HS Series Half Surface Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surface of the door and frame rabbet. This hinge allows for adjustments for proper alignment, and is designed for use with hollow metal frames where the insert conforms to SDI specifications for aligning doors and frames.

  • For use with hollow metal frames where inset conforms to SDI specifications for aligning doors and frames
  • Allows for adjustments to properly align the edge of the door to the frame
  • Applied to exposed surfaces of the door and frame


Certifications:

  • Health Product Declaration (HPD)

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

  • ANSI/BHMA Standard A156.26
  • - Health Product Declaration (HPD) - ANSI/BHMA Standard A156.26 - UL 10C Fire Rated



Read more
More Information
Specifications
  • Grade: Grade 1
  • Hinge Material: Aluminum
  • Hinge Mounting Type: Half Surface
  • Hinge Strength: Heavy Weight
  • Handing: Non-handed
  • Fastener: Teks
  • Fastener Type: Self Drilling
  • Maximum Door Thickness: 2 1/4"
  • Minimum Door Thickness: 1 3/4"
  • Maximum Door Width: 4'
  • Length: 83"
  • Maximum Swing: 180°
  • Minimum Hinge Clearance: 1/8"
UPC 722208647589
