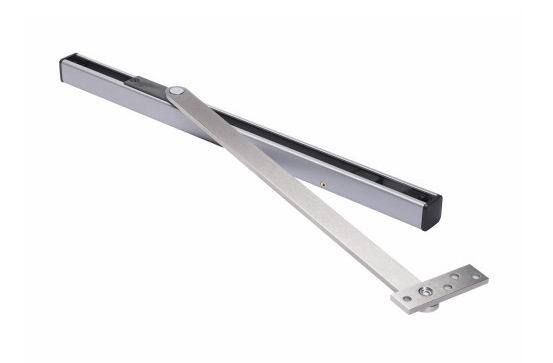

Rixson 1-326 Checkmate Concealed Heavy Duty Hold Open, Stainless Steel

Rixson 1-326 Checkmate Concealed Heavy Duty Hold Open, Stainless Steel

Checkmate® overhead stops and holders are used to extend the life of the door, frame, and any door closing devices. They are ideal for installations prone to strong winds, high traffic, or abuse, and when used with a floor closer, they provide absolute control at the top and bottom of the door.

Applications:

• Interior or exterior doors
• Single or double-acting
• Non-handed
• Recommended for high traffic, heavy abuse installations

Features:

• Heavy-duty
• Hold Open – door remains held open near deadstop location
• Slide track design
• 1 3/4″ minimum door thickness
• 110° maximum opening
• Durable slider cam and shock block
• 1 3/16″ square channel
• Complete screw packet for installation in wood and machine screws for door and frame.

Compliance:

• ANSI/BHMA A156.8, Grade 1 Certified
