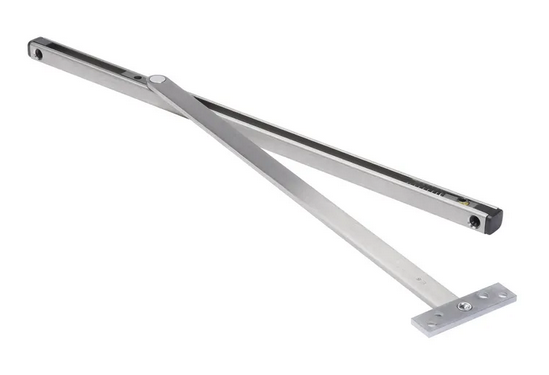

Rixson 10-346 Checkmate Surface Mounted Overhead Door Stop and Holder, Size 3

The 10 Series Checkmate® stop and holder is an adjustable, suface-mounted unit designed for moderate traffic, medium-weight interior doors.

  • Moderate traffic, medium weight door applications

  • Degree of opening is fully adjustable and can be adapted to changing needs

  • Surface mounted

  • Adjustable, slide track arm

  • For use on interior, single acting doors

  • Maximum opening is 110 degrees

  • Multi-function unit is shipped as a stop; can be converted to a hold open or friction in field. 5012-PKG (adapter kit) included

  • Standard door thickness is 1 3/4"

  • Friction, hold open, stop and multi-functions

  • 3/4" square channel

  • Heavy shock absorber spring provides compression before dead stop

  • Durable slider cam and shock block

  • Complete screw packet with thru-bolts for door, plus wood and machine screws for frame

Certifications:

  • ANSI/BHMA A156.8, Grade 1

  • Stop functions UL listed







Read more
More Information
Specifications
  • Door Swing: Single Acting
  • Handing: Non-handed
  • Holder Function: Friction, Hold Open, Stop, Multi-function
  • Traffic Rating: Moderate Traffic
  • Finish: Satin Stainless Steel
  • For 30-1/16″ to 36″ Door Openings (Butt Hinge or Offset Pivots)
  • Warranty: 2-year limited warranty
