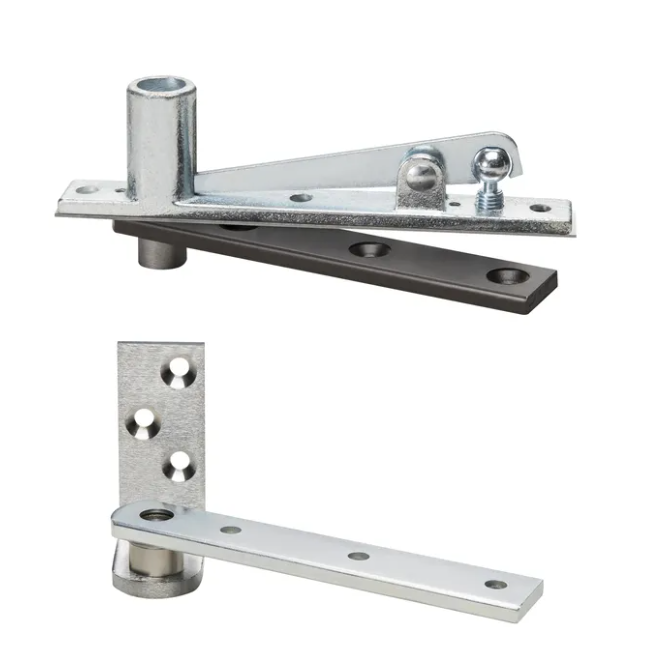

Rixson 127-3/4 Center Hung Side Jamb Attached Pivot Set (Includes 320 Top Pivot)

The 127-3/4 is a center-hung, light-duty, jamb-mounted pivot set designed for interior doors weighing up to 200lbs.

Features:

• Interior doors
• Weight to 200 lbs.
• Door sizes up to 3'6"x 8'6" (1067 x 2591mm)
• Non-handed
• 320 top pivot included
• Bottom pivot mortised into side jamb
• Weight of door borne by floor
• Pivot point centered in thickness of door
• Door must have radius on pivot edge
• Not allowed for use on labeled doors and frames

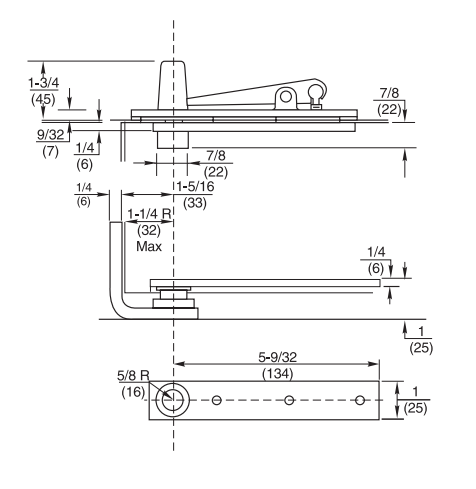

• Pivot point remains constant at 1 1/4" (32mm) from the edge of the door
• Furnished with wood and machine screws
