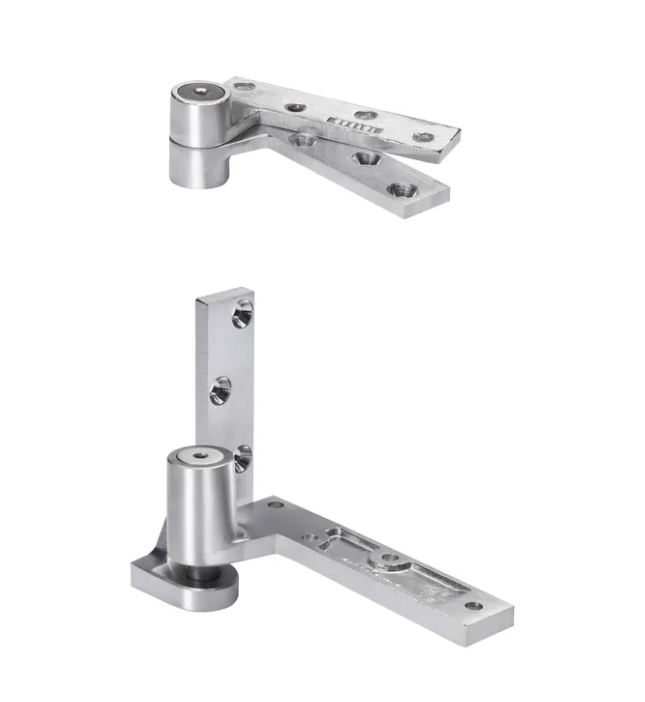

Rixson 195 3/4" Offset Hung Pivot (Includes 180 Top Pivot)
SKU:
195 613 LH
Brand : Rixson
In Stock
Usually Ships Next Day
- $607.00
- $607.00
- Unit price
- per
Subtotal:
$607.00
Questions? Live Chat, Email or Call 332-255-3200
Quick Overview
- Exterior or interior doors
- Weight to 450 lbs.
- Door width up to 48"
Secured and trusted checkout with
Rixson 195 3/4" Offset Hung Pivot (Includes 180 Top Pivot)
Features:
- Exterior or interior doors
-
Weight to 450 lbs. (Door size & weight guidelines are determined using the appropriate number of
intermediate pivots) - Door width up to 4'0" (1219mm)
- 180 top pivot included
- 119 or M19 intermediate pivots are recommended (sold separately)

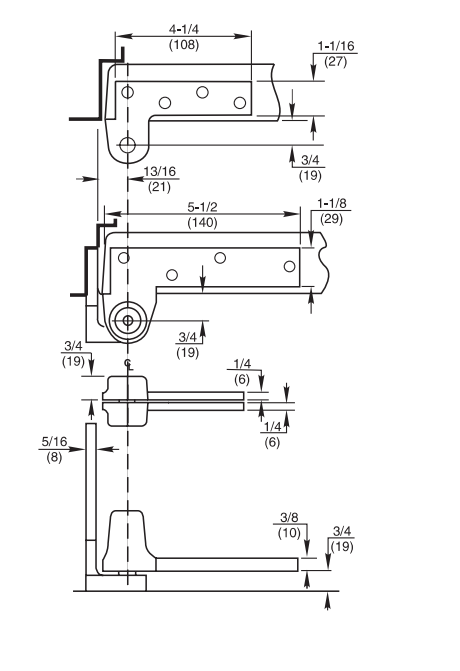

- 3/4" (19mm) offset (measured from centerline of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Bottom pivot mortised into side jamb
- Pivot set can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims
- Weight of door is borne by floor portion
- Doors will swing 180°, trim permitting
- Non-ferrous base material
- Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
- Furnished with wood and machine screws
Compliance:
- ANSI/BHMA A156.4, Grade 2
- ANSI C07172
