Rixson 9-326 Checkmate Surface Mounted, Heavy Duty Hold Open Door Holder, Size 3, Stainless Steel

Rixson 9-326 Checkmate Surface Mounted, Heavy Duty Hold Open Door Holder, Size 3, Stainless Steel

SKU: 9-326 x 630 3

Brand : Norton

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$386.00
$386.00
Subtotal: $386.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

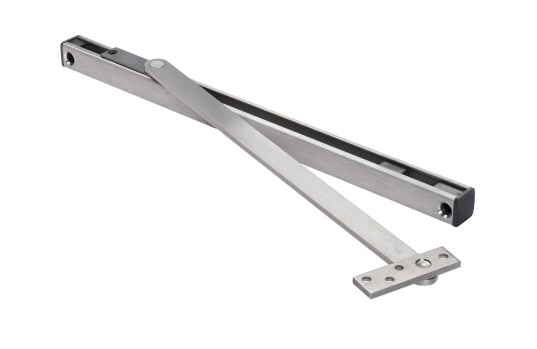

Rixson 9-326 Checkmate Surface Mounted, Heavy Duty Hold Open Door Holder, Size 3, Stainless Steel

The 9 Series Checkmate® is a heavy-duty, surface-mounted stop and holder designed for high-traffic interior or exterior doors that withstand heavy abuse.

  • High traffic, heavy abuse applications

  • Heavy duty construction

  • Surface mounted

  • Slide track arm

  • For use on interior or exterior, single acting doors

  • Maximum opening is 110 degrees

  • 1-3/4” minimum door thickness

  • Friction, hold open and stop functions

  • 1-3/16" square channel

  • Heavy shock absorber spring provides 5-7 degrees compression before dead stop

  • The less spring (LS) option omits spring for special applications

  • Surface on/off knob on hold open models

  • Complete screw packet with thru-bolts for door, plus wood and machine screws for frame

  • For security areas, Torx® screws are optional

  • Hanging means other than standard butts or offset pivots requires special templating

Certifications:

  • Certain Models ANSI/BHMA A156.8, Grade 1 Certified

  • Stop functions UL listed



Read more
More Information
Specifications
  • Door Swing: Single Acting
  • Handing: Non-handed
  • Holder Function: Friction, Hold Open, Stop
  • Traffic Rating: High Traffic
  • Finish: Satin stainless steel
  • 9-326: Size 3 HOLD OPEN:
    • Butts Offset Pivots: 33-1/16" - 38"
    • Center Hung Pivots: 36-1/16" - 41"
  • Warranty: 2-year limited warranty
