Rixson 998M Long Armature Electromagnetic Door Holder/Release - Wall Mounted

SKU: 998M-689

Brand : Rixson

In Stock

Usually Ships Next Day

$312.00; $312.00
Unit price: per

Finish: 689 - Aluminum

Product variants

Quantity:

Subtotal: $312.00

Questions? Live Chat, Email or Call 332-255-3200

Quick Overview

Wall mount
Concealed wiring

Secured and trusted checkout with

Details

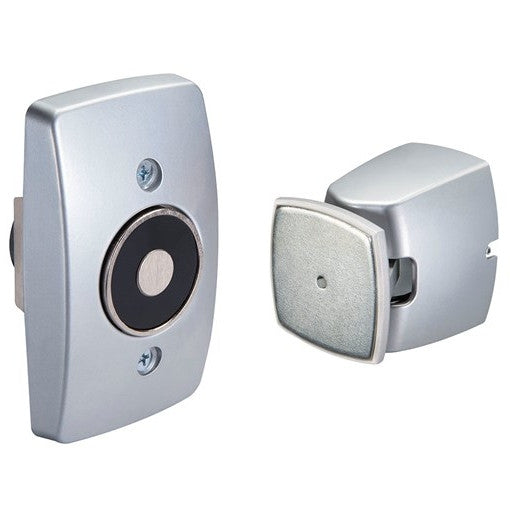

Rixson 998M Long Armature Electromagnetic Door Holder/Release- Wall Mount

The 998M electromagnetic door holder is a wall-mounted unit with concealed wiring. Doors remains open unless electromagnetic holder is released by alarm or smoke detector. Fail safe operation; power failure releases door to close

Wall mount
Concealed wiring

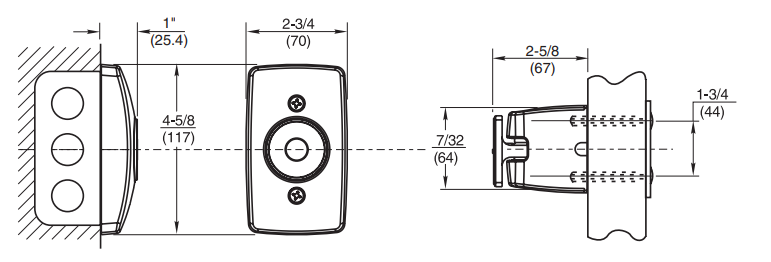

Total projection: 3-5/8"
Mounting requirements: 2" x 4" x 1-3/4" outlet box
Wall must be properly reinforced and outlet box adequately fastened
Tri-volt (120VAC, 24VAC/DC, 12VDC)

25-40 lbs. holding force

Certifications:

ANSI/BHMA A156.15, Grade 1
UL-cUL Listed

More Information

Specifications	Total Projection: 3 5/8" (92mm) Mounting requirements: 2" x 4" x 1 3/4" (51 x 102 x 45mm) outlet box Compliance: ANSI/C00011 Warranty: 2 year limited warranty Voltage and current: 120VAC, 60Hz., .020 amp 24VAC/DC, 60Hz., .020 amp 12VDC, .040 amp
UPC	722208641518
