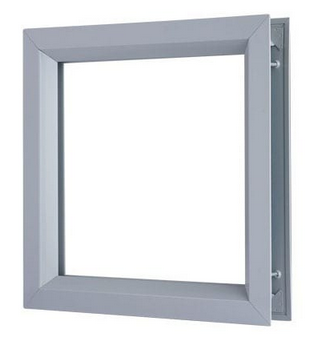

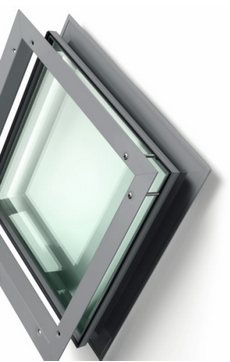

Rockwood LT-B1 Vision Beveled Lite Kit - 3/8" Glazing Pocket for 1/4" Glass

The beveled lite kit adds style and benefits to your interior decor. It installs without drilling holes through the door, and its hemmed design is a flush mounted assembly.

Lite kits are classified in accordance with UBC code standard 7-2 for positive pressure; 90 minute fire rating.

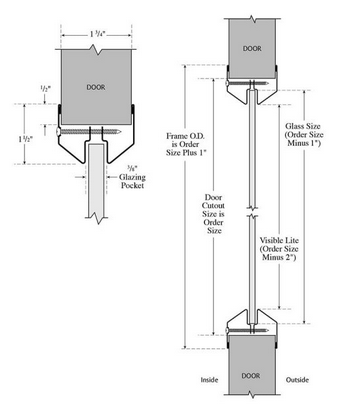

Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
Glass / Glazing Tape Not Included – glazing to be ordered separately. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
Classified in accordance with UBC code standard 7-2 for positive pressure.

More Information

Specifications	Frame Profile: Low Material: 20 Gauge Cold Rolled Steel Fasteners: #8 x 13/4" OH SMS Glass Thickness: 1/4" Door Thickness: 1 3/4" Dimensions: Minimum width: 4" Maximum width: 38" Minimum height: 5" Maximum height: 82" Insert: Glass (Not Included) 1/4" x order size minus 1" Fire Rating: Classified in accordance with UBC code standard 7-2 for positive pressure 90 Minute Fire Rating
UPC	722208643925

Specifications

Frame Profile: Low
Material: 20 Gauge Cold Rolled Steel
Fasteners: #8 x 13/4" OH SMS
Glass Thickness: 1/4"
Door Thickness: 1 3/4"
Dimensions:
- Minimum width: 4" Maximum width: 38"
- Minimum height: 5" Maximum height: 82"
Insert: Glass (Not Included) 1/4" x order size minus 1"
Fire Rating:
- Classified in accordance with UBC code standard 7-2 for positive pressure
- 90 Minute Fire Rating
