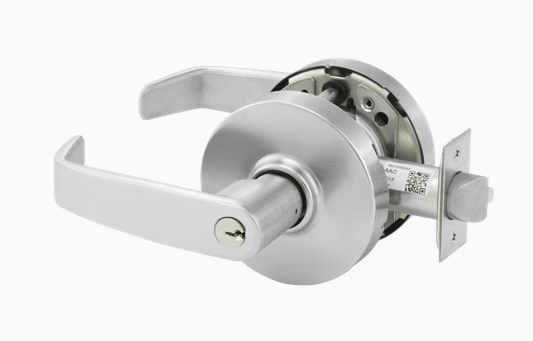

Sargent 10XG04 Grade 1 Storeroom/Closet Cylindrical Lock

Sargent 10XG04 Grade 1 Storeroom/Closet Cylindrical Lock

SKU: 10XG04 LL 26D

Brand : Sargent

In Stock

Usually Ships Next Day

$598.00; $598.00
Unit price: per

Finish: US26D - Satin Chrome

Backset: 2 3/4" Backset (Standard)

2 3/4" Backset (Standard) 2 3/8" Backset

Strike: ANSI Strike 1 1/4" Lip (Standard)

ANSI Strike 1 1/4" Lip (Standard) T-Strike 1 1/4" Lip

Product variants

Quantity:

Subtotal: $598.00

Questions? Live Chat, Email or Call 332-255-3200

Secured and trusted checkout with

Details

Sargent 10XG04 Grade 1 Storeroom/Closet Cylindrical Lock

The SARGENT 10X Line isn't just built to last, it's built to thrive. Engineered for high-traffic, high-abuse environments, it exceeds ANSI/BHMA Grade 1 standards by up to 20 times, ensuring reliable performance throughout its entire lifecycle.

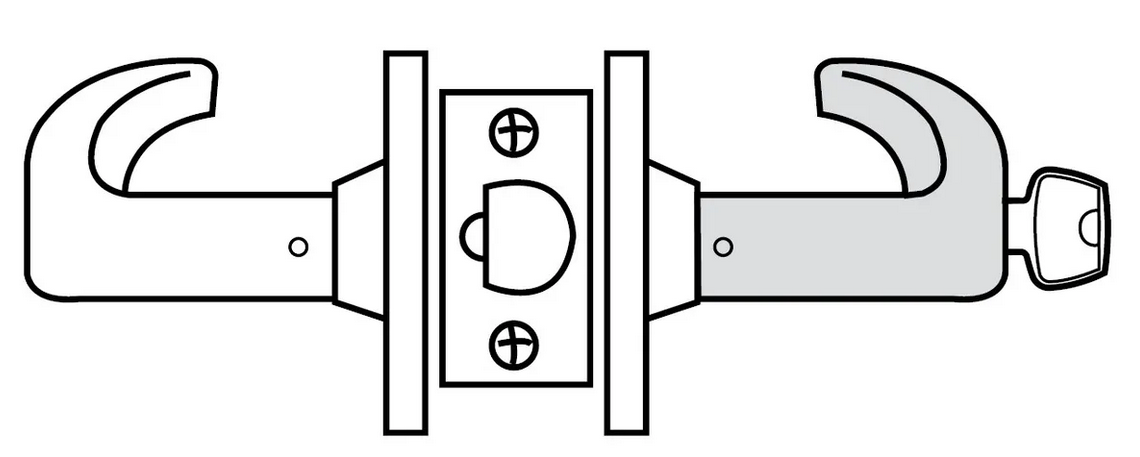

Function:

Deadlocking latch
Latch by lever inside or key outside
Outside lever locked at all times

Certifications:

ANSI/SDI 250.13 Certified
ASTM E330 Certified
Florida Building Code Approved FL# 2998
Americans with Disabilities Act (ADA) Compliant
UL-cUL Fire-Rated Up to 3 Hours
ASTM E1996 Certified
ASTM E1886 Certified
NFPA 80 Compliant
TAS 201 Certified
TAS 202 Certified
TAS 203 Certified
ICC A117.1 Compliant
UL 437 listed when using Degree high-security UL 437 cylinders
ANSI/BHMA A156.2, Series 4000, Grade 1
ANSI/BHMA A156.41

More Information

Specifications	Handing: Non-handed Door Thickness: 1-3/4" to 2" Bolt Projection: 1/2" Std. Strike Height: 4-7/8" Std. Strike Width: 1-1/4" Cylinder Type: Conventional Cylinder, 6-pin Key(s): 2 Cut Keys Std. Latch Type: Deadlatch Lock Face Size: 1-1/8" x 2-1/4" Std. Strike Type: ANSI Curved Lip Strike Screws: Wood/Machine Screws Lever/Knob Design Family: Straight Return Lever Std. Latch Backset Dim: 2-3/4" Latch Bore Diameter: 1" Bore Hole Diameter: 2-1/8" Rose/Escutcheon Dimensions: 3-1/2" Std. Strike Number: 808 Lever/Knob Design: L Lever Rose/Escutcheon Design: L Rose Std. Latch Number: 10-2000
