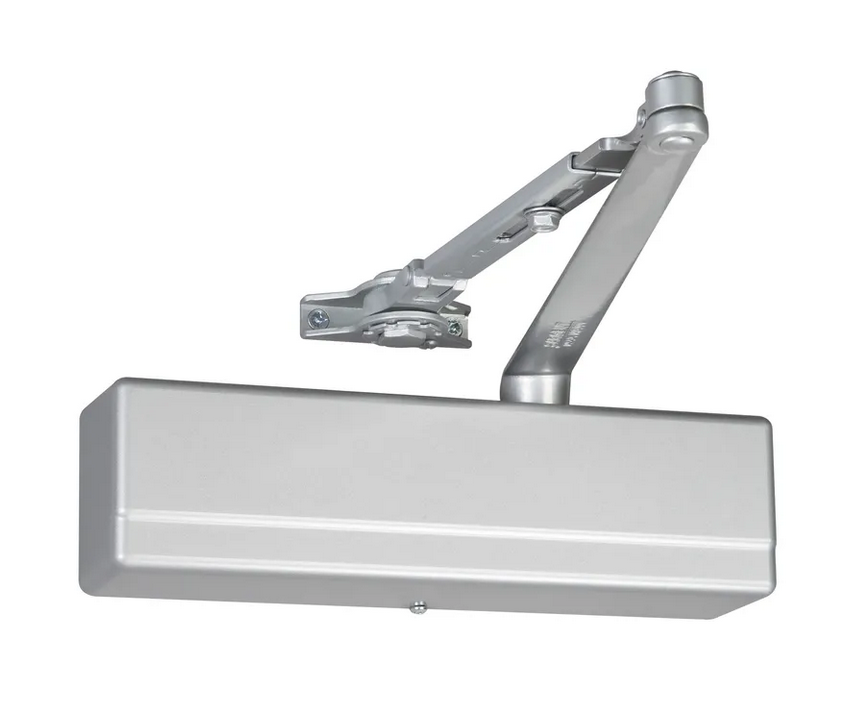

Sargent 1431-CPS TB EN Surface Door Closer, Heavy Duty Parallel Arm with Compression Stop

The 1431 Series Powerglide® Door Closer features heavy-duty construction for superior strength and wear resistance. It is ideally suited for highly trafficked environments like schools, healthcare facilities, office buildings, and commercial buildings. With a full complement of arm types and front-facing valves, this door closer can be easily installed and maintained—for interior and exterior applications.

CPS - Heavy Duty Parallel Arm with Compression Stop:

  • Forged Steel Arm 11-1/4" (286mm) long
  • Provides built in compression stop from 85° – 105°
  • Permits 105° opening maximum
  • Easily installed
  • Handed arm is field-reversible
  • Dead stop within 3°

Certifications:

  • ANSI/BHMA A156.4, Grade 1

  • Americans with Disabilities Act (ADA) Compliant

  • ICC A117.1 Compliant

  • UL-cUL Fire-Rated Up to 3 Hours

Read more
More Information
Specifications
  • Handing: Non-Handed
  • Type: Surface
  • Mounting Group: Hydraulic
  • Hold Open: No
  • Back Check: Adjustable
  • Cold Weather Fluid: Yes
  • Cover: Plastic
  • Mounting Location: Push Side
  • Mounting Style: Parallel Arm
  • Arm Type: Parallel Arm Spring Stop
  • Delay: No
  • Through Bolts: Yes
  • Stop: Compression Stop
