Sargent 351-O TB EN Surface Door Closer, Standard Arm, Thru Bolts, Sprayed Aluminum Enamel

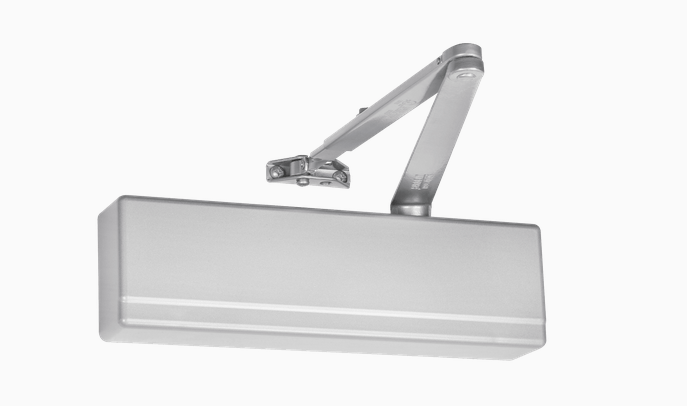

Sargent 351-O Surface Door Closer — Standard Arm, Thru Bolts, Sprayed Aluminum Enamel

The Sargent 351-O is a heavy-duty surface-mounted door closer with a standard arm configuration, part of the proven 351 Powerglide® Series. The standard arm (also called regular arm) mounts on the pull side of the door, making it the most common and versatile installation for interior and exterior commercial doors.

Compared to the parallel arm (CPS) version, the standard arm provides a more compact footprint and is ideal for openings where door swing is not restricted and a compression stop is not required.

Key Features

• Standard arm (pull-side) mounting — most common commercial door closer configuration
• Adjustable spring power — covers size range 1 through 6 in a single closer body
• Non-handed — installs on left- or right-hand doors without modification
• All-weather hydraulic fluid — reliable performance in extreme temperatures
• Heat-treated full-closed rack and pinion construction
• Heavy-duty one-piece die cast aluminum silicon alloy body
• 1-1/2" diameter piston with adjustable backcheck
• Front-facing captured valves — easy field adjustment
• High-impact non-corrosive plastic cover included
• Thru-bolt mounting with self-sticking templates

Certifications & Compliance

• ANSI/BHMA A156.4, Grade 1
• ADA Compliant
• ICC A117.1 Compliant
• UL/cUL Fire-Rated up to 3 Hours

Specifications

• Finish: Sprayed Aluminum Enamel (EN)
• Mounting: Surface, Thru Bolt (TB)
• Arm Type: Standard Arm (O)
• Size Range: 1–6 (adjustable)
• Application: Interior and exterior commercial doors, pull-side mounting
