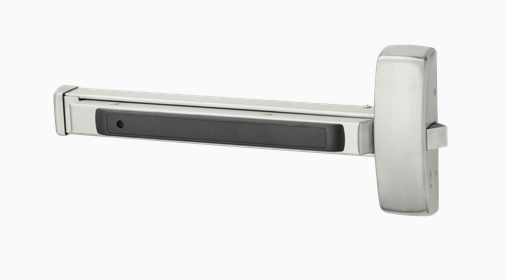

Sargent 8810E Grade 1 Rim Exit Bar, Wide Stile Pushpad, 32" Device, Exit Only, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible

Sargent 8810E Grade 1 Rim Exit Bar, Wide Stile Pushpad, 32" Device, Exit Only, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible

SKU: 8810E 32D

Brand : Sargent

In Stock

Usually Ships Next Day

×

Transit time is determined by shipping method and destination. Most orders will ship via FedEx or UPS Ground. If an item is out of stock or will require significant lead time we will contact you. Same-Day shipping cutoff time is 12:00 pm EST. Please see our Shipping Info page for more details. You can also CHAT WITH US to determine Shipping Estimates for your specific Items.

$1,498.00
$1,498.00
Subtotal: $1,498.00
Questions? Live Chat, or Call 332-255-3200

Secured and trusted checkout with

Details

Sargent 8810E Grade 1 Rim Exit Bar, Wide Stile Pushpad, 32" Device, Exit Only, Hex Key Dogging, Satin Stainless Steel Finish, Field Reversible

The 8800 series is designed for standard width stile applications on wood and metal doors.

The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.

Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Read more
More Information
Specifications
  • Door Thickness: 1-3/4" - 2-1/4"
  • Physical Appearance: Wide Stile Pushpad
  • Device Type: Rim
  • Door Material: Metal or Wood
  • Includes Cylinder(s): No
  • Reversible: Yes
  • Fire Rated: No
  • Cylinder Type: Non-Keyed
  • Dogging Options: Hex Key Dogging
  • Minimum Stile Size: 4-3/4"
  • Handing: Non-Handed
  • Includes Trim: No
  • Trim Type: Less Trim
  • Device Length: 32"
  • Mechanical Function: Exit Only
  • Door Width: 24" to 32"
