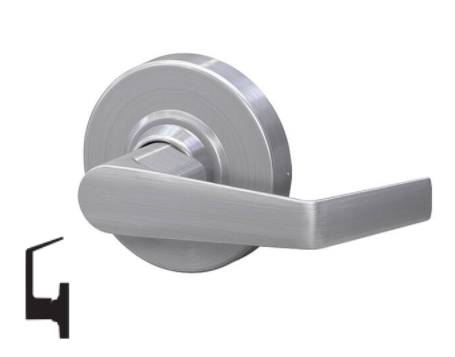

Schlage ALX170 Grade 2 Commercial Single Dummy Lever Trim

Schlage ALX170 Grade 2 Commercial Single Dummy Lever Trim

The Schlage ALX170 is a Grade 2 single dummy lever trim designed for use as a door pull or matching inactive trim where no latch or locking function is required. Non-handed and non-keyed, it installs on any door without modification. Built on Schlage's patent-pending ALX chassis, it shares the same lever and finish options as the full ALX lockset line for a consistent look throughout a facility.

Function:

• No key; rigid plain lever outside; no hardware inside; no latchbolt
• Use as a door pull or matching inactive trim on paired doors

Certifications & Compliance:

• ANSI/BHMA: Certified A156.2-2011, Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
• UL/cUL Listed: A label single fire door (4'×8', 4'×10') 3-hour; pair doors (8'×8') 3-hour; (8'×10') 90-minute
• ADA Compliant: All lever designs meet Americans with Disabilities Act requirements
• ICC: Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities

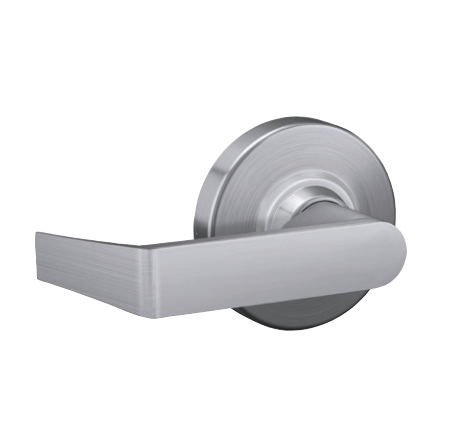

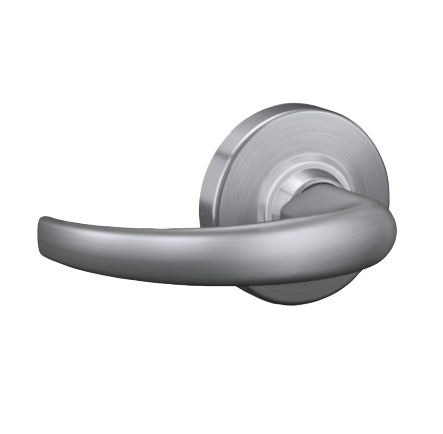

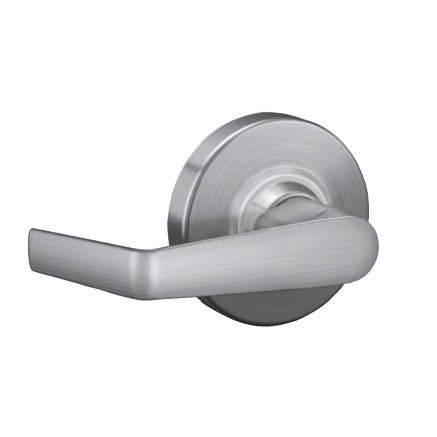

• CA Fire Code: Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular levers comply (return to door ≤ 1/2")
• FL Building Code: Meets ASTM E330, E1886, E1996 and Miami-Dade (TAS 201, 202, 203) hurricane requirements
• Federal: Meets FF-H-106C Series 161
