Schlage ALX80 Grade 2 Commercial Storeroom Lever Lock | Key Entry Outside

Schlage ALX80P Grade 2 Storeroom Cylindrical Lock with Field Selectable Vandlgard, Conventional Cylinder

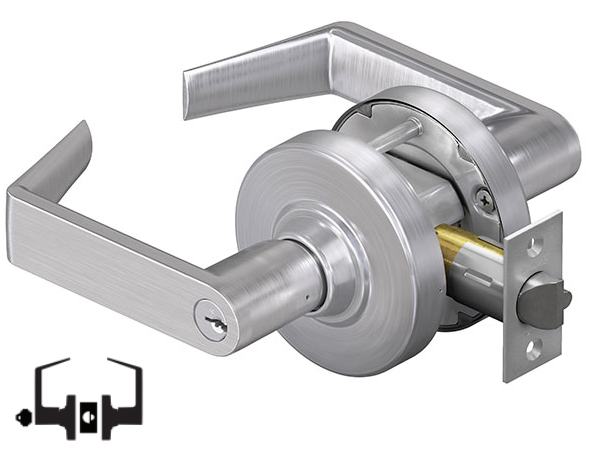

The Schlage ALX80 is a Grade 2 storeroom function lever lock designed for commercial applications where controlled entry is required. The outside lever is always fixed — entry is by key only — while the inside lever remains free at all times for immediate egress. A deadlatch provides added security against latch manipulation.

Function:

Key cylinder outside; plain lever inside; deadlatch
Outside lever always fixed — key required for entry
Key retracts the latch from outside
Inside lever always free for immediate egress

Certifications & Compliance:

ANSI/BHMA: Certified A156.2-2011, Series 4000, Grade 2; exceeds standard for lever and spindle strength and durability
UL/cUL Listed: A label single fire door (4'×8', 4'×10') 3-hour; pair doors (8'×8') 3-hour; (8'×10') 90-minute
ADA Compliant: All lever designs meet Americans with Disabilities Act requirements
ICC: Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities
CA Fire Code: Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular levers comply (return to door ≤ 1/2")
FL Building Code: Meets ASTM E330, E1886, E1996 and Miami-Dade (TAS 201, 202, 203) hurricane requirements
Federal: Meets FF-H-106C Series 161

More Information

Specifications	Material: Steel, zinc dichromated for corrosion resistance Door thickness: Standard: 1 3⁄8" to 1 3⁄4" Handing: Non-handed Levers: Pressure cast zinc, plated to match product finish specification Roses: Wrought brass, bronze or zinc plated to match finish specification Backset: Standard: 2 3⁄4" Faceplate: Standard: 1 1⁄8" x 2 1⁄4" square corners Latch: Standard: 7⁄8" bolt diameter, up to 1" housing diameter, 1⁄2" throw in stainless steel Strike: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Cylinder: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options designed to fit competitive cores from Sargent and Corbin Russwin Keying: Standard: Everest 29 S123 patented open keyway, keyed different (KD) Keys: (for P6 and P cylinders) Two nickel silver cut keys per lock
UPC	722208640689

Specifications

Material: Steel, zinc dichromated for corrosion resistance
Door thickness: Standard: 1 3⁄8" to 1 3⁄4"
Handing: Non-handed
Levers: Pressure cast zinc, plated to match product finish specification
Roses: Wrought brass, bronze or zinc plated to match finish specification
Backset: Standard: 2 3⁄4"
Faceplate: Standard: 1 1⁄8" x 2 1⁄4" square corners
Latch: Standard: 7⁄8" bolt diameter, up to 1" housing diameter, 1⁄2" throw in stainless steel
Strike: Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16"
Cylinder: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options designed to fit competitive cores from Sargent and Corbin Russwin
Keying: Standard: Everest 29 S123 patented open keyway, keyed different (KD)
Keys: (for P6 and P cylinders) Two nickel silver cut keys per lock
